Introduction
Removing the battery is almost always the first step in repairing or replacing any part of a laptop, as well as troubleshooting a faulty charging circuit. No special tools are required.
-
-

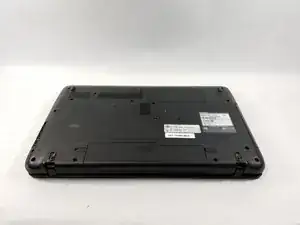

Flip the laptop over, so that the "top" of the laptop is against your working surface.
-
Orient the laptop so that the silver label is in the bottom-left corner, with the battery facing you.
-
-
-

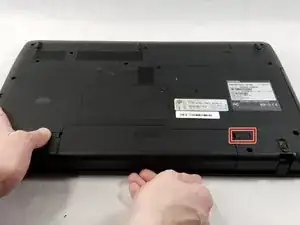

On the right side of the battery, move the tab marked 1 to the right, unlocking the battery.
-
On the left side of the battery, hold the tab marked 2 to the left while pulling the battery towards you.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
