Introduction

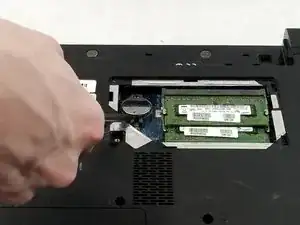

Sometimes a CMOS battery needs to be replaced or re-seated - in this laptop, that’s a fairly simple and straightforward process. You’ll need a PH0-head screwdriver and a plastic tool to pry the battery from its socket.
-
-
Flip the laptop over, so that the "top" of the laptop is against your working surface.
-
Orient the laptop so that the silver label is in the bottom-left corner, with the battery facing you.
-
-
-
On the right side of the battery, move the tab marked 1 to the right, unlocking the battery.
-
On the left side of the battery, hold the tab marked 2 to the left while pulling the battery towards you.
-
-
-
Rotate the laptop so that the battery cavity faces away from you.
-

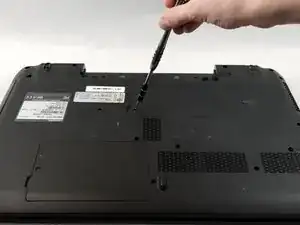

Unscrew the single PH0-head screw connecting the center panel to the laptop.
-

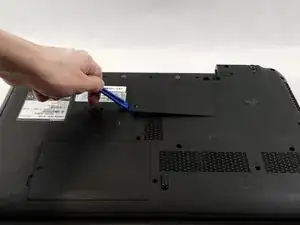

Using a plastic spudger, unclip and remove the panel from the device.
-
To reassemble your device, follow these instructions in reverse order.
