Introduction
Faulty or corrupted storage drives can be the root of many computer issues. Replacing it is an especially simple process in this laptop - you’ll just need a PH0-head screwdriver.
-
-
Flip the laptop over, so that the "top" of the laptop is against your working surface.
-
Orient the laptop so that the silver label is in the bottom-left corner, with the battery facing you.
-
-
-
On the right side of the battery, move the tab marked 1 to the right, unlocking the battery.
-
On the left side of the battery, hold the tab marked 2 to the left while pulling the battery towards you.
-
-
-
Rotate the laptop so that the battery cavity faces away from you.
-

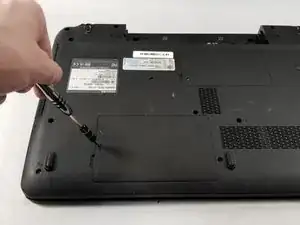

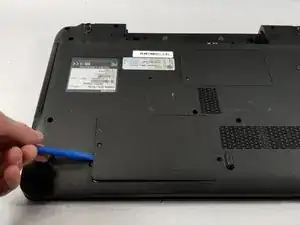

Remove the lower-left plastic panel by loosening the single PH0-head screw and prying it up with a plastic spudger.
-
-
-

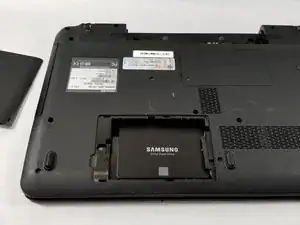

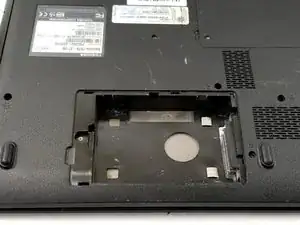

Remove the existing drive by sliding it towards the left until it's disconnected, and then lift it out of the device.
-
To reassemble your device, follow these instructions in reverse order.
