Introduction
This guide will show you how to replace your disc drive. This repair requires only a small Phillips Head Screwdriver and your hands.
Tools
-

                  -
            To begin, locate the middle L-shaped panel on the back of the device. Remove the one 7mm long screw (5mm head) located on that panel.
-

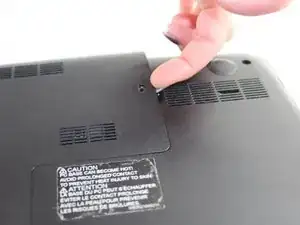

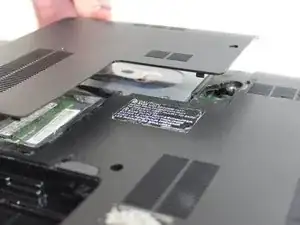

            Once the screw is removed, lift the panel by grabbing the indentation by the screw and pulling upwards.

-

-

                  -

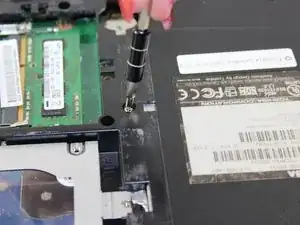

            Locate the screw to the right of the RAM inside the panel. This screw is 6mm long (5mm head); remove it with a small Phillips head screwdriver.

-

-

                  -

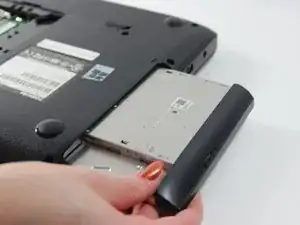

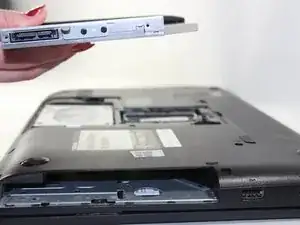

            Now that the single screw is removed, you should be able to smoothly slide out the disc drive.
-
            Do this by grabbing the tray located on the right edge of your device and pulling out.

-

To reassemble your device, follow these instructions in reverse order.
