Introduction
This guide will show you how to remove your laptops RAM. This process requires a small Phillips Head screwdriver and your hands. There will be several small screws removed, so be sure you have a place to store them as you work to keep from losing any.
-
-

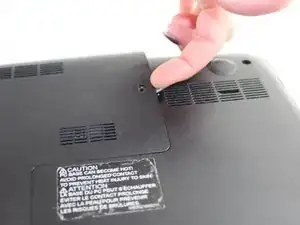

Using a small Phillip's head screwdriver, unscrew the single 7 mm screw (5 mm head) on the L-shaped panel on the backside of the laptop.
-

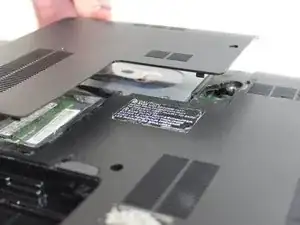

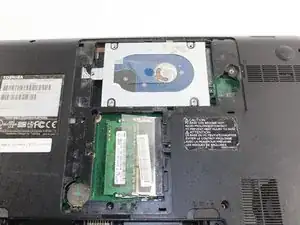

Once the screw is removed, pry the panel upwards by gripping the groove pictured.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
