Toshiba Satellite L305-S5946 RAM Replacement

Written By: Michael Erberich
  • Comments: 0
Toshiba Satellite L305-S5946 RAM Replacement

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

Use this guide to replace or upgrade RAM cards in your Toshiba Satellite L305-S5946. Replacing your RAM cards will allow you to work with more programs. Doing this requires only removal of the battery as a precursor.

  1. OFyVSJM22YeKOGbR

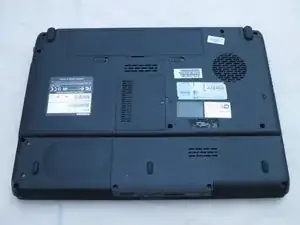

    • Place the laptop upside-down with the display hinges facing away from you.

  2. EsonHCyJ5QuFkVCr

    • Slide the latch for the left battery bay to the left.

  3. ZCoKtRD4nnq3KVgK
    ZCoKtRD4nnq3KVgK
    TLjMRGGGuhacnD3A
    UIAHElAWljgtQM2Y

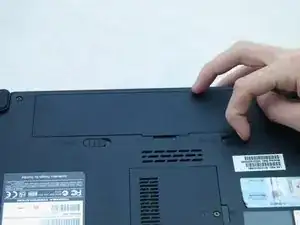

    • Slide the latch for the right battery bay to the right and hold.

    • Continue to hold the latch while using a plastic opening tool to lift and remove the battery bay cover.

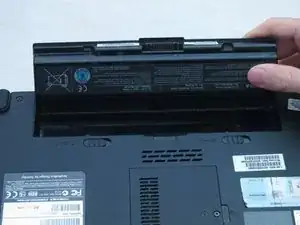

    • Remove the battery.

  4. lrJh6NFtlEgElCqg

    • Using a Phillips #1 screwdriver, turn the screw on the RAM cover until you hear a click.

    • This is a captive panel screw and remains with the cover.

  5. ijWRPLn56olfGygf
    ijWRPLn56olfGygf
    MBiG5yvdH1hPLJfv

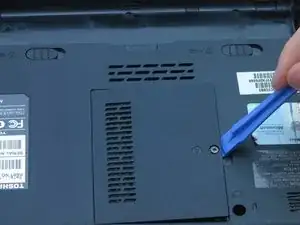

    • Remove the RAM cover by inserting the plastic opening tool into the indent and lifting.

  6. vnTsEhKEylSDyY3V
    vnTsEhKEylSDyY3V
    MFjkdyCLCAqGNSMY

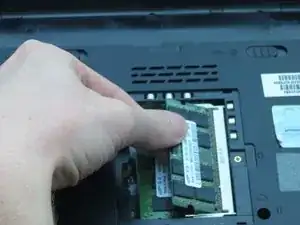

    • Push the white and silver retaining clips away from each side of the RAM card using your fingernails.

    • The RAM card should pop up at an angle.

  7. mVcSjSPdTDjVkAA4
    mVcSjSPdTDjVkAA4
    BfsYVLnytwfRlHdA

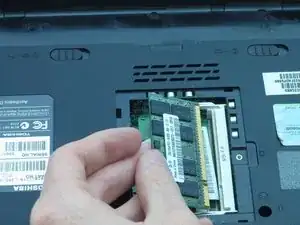

    • Pull the RAM card away from the computer.

    • Repeat Steps 6 and 7 to remove the other RAM card that may be installed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
