Toshiba Satellite L305-S5955 RAM Replacement

Written By: Samuel Baker
  • Comments: 0
Toshiba Satellite L305-S5955 RAM Replacement

Difficulty

Moderate

Steps

4

Time Required

10 - 15 minutes

Introduction

A quick and easy way to learn how to replace the RAM in your Toshiba Satellite.

  1. Vh2utdCncmU6p1IT

    • Make sure before proceeding to power down, remove the charger, and close your laptop, to avoid damaging your device or harming yourself.

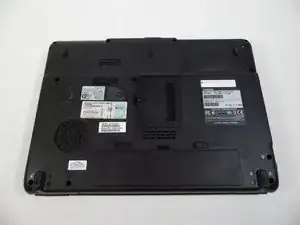

    • Flip laptop over and locate the RAM cover in the middle of the laptop.

  2. qyhr45MAvnbMELFj
    qyhr45MAvnbMELFj
    YKXXiOsqGXP6626E

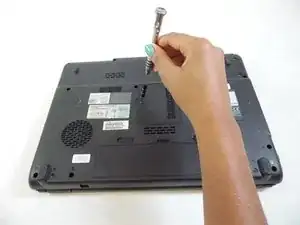

    • Unscrew the screw marked "4"with PH1 screwdriver.

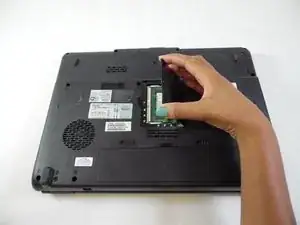

    • Remove cover by lifting up and pulling it out.

  3. NJYrHCfs5x6agnBN
    NJYrHCfs5x6agnBN
    14yCTO1iVXEsgqNv

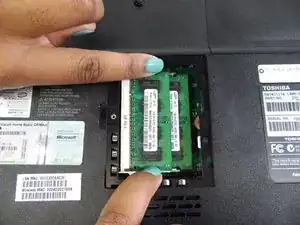

    • Push latches outwards away from the RAM chip until it pops up.

    • Fingers may be pinched by the latches.

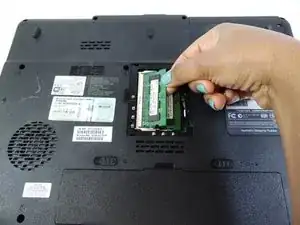

    • Pull RAM chip out.

  4. 6LbqYFZaQV2NI2kP
    6LbqYFZaQV2NI2kP
    4mYCxqcEMYGUYyZj

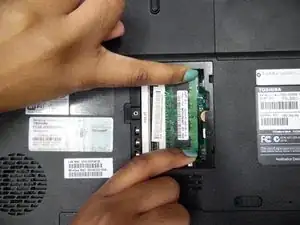

    • Repeat Step 3 for the bottom RAM chip.

Conclusion

To reassemble your device, follow these instructions in reverse order.
