Introduction
In order to take the motherboard cover off the keyboard needs to be removed.
Tools
-


-

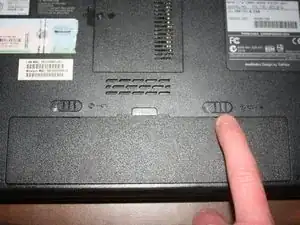

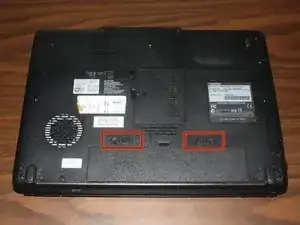

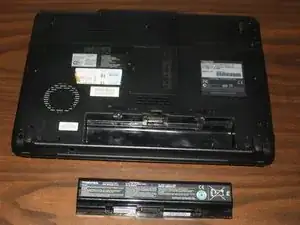

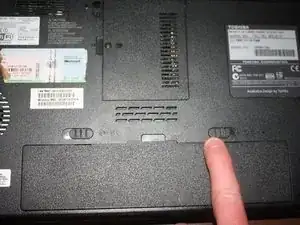

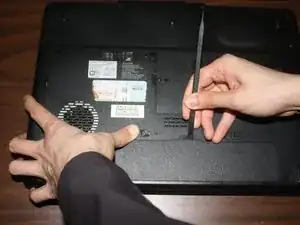

While holding the left battery lock to the left, lift up the battery using the tab located on the top center of the battery.

 -

 -


-

Locate the plastic strip at the top of the keyboard.
 -

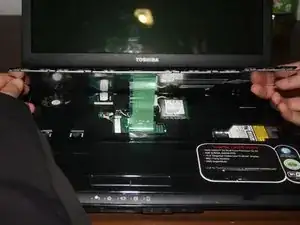

Use a pry tool to remove the plastic strip.
 -

Using your hands pull out the rest of the plastic strip.

 -

 -


-

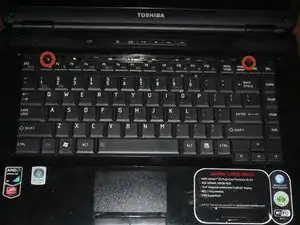

Use a phillips head #0 screwdriver to remove the two 3.75mm screws holding the keyboard in place.

 -

 -


-

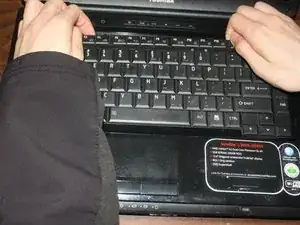

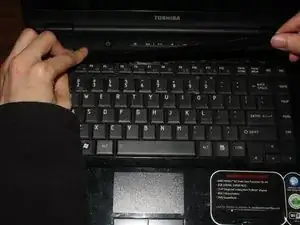

Lift up the top of the keyboard to remove it.
 -

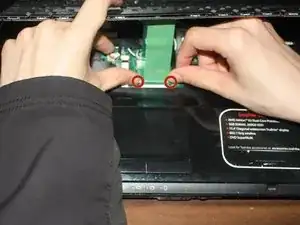

Unlock the ribbon cable by pushing on the locks that are located on both sides of ribbon cable.
 -

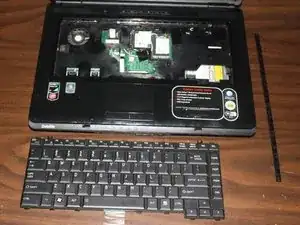

Unplug the ribbon cable from the laptop.

 -

 -


-

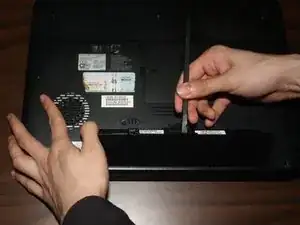

Remove all 6.75mm screws from the bottom of the laptop. The 3 screws under the battery are 3.75mm.
 -

Remove all 5.25mm screws from the top of the laptop.

 -

 -


-

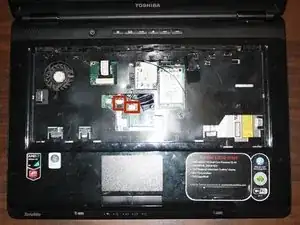

Unplug the wires highlighted with red squares.
 -

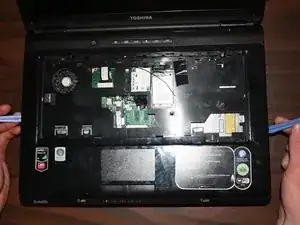

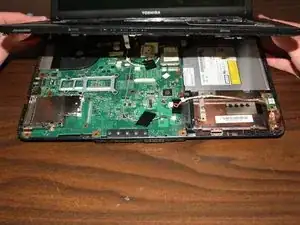

Using a pry tool and yours hands to remove the motherboard cover.

 -


To reassemble your device, follow these instructions in reverse order.
