Introduction
In order to replace the motherboard the hard drive, RAM, keyboard and motherboard cover need to be removed.
Tools
-


-

While holding the left battery lock to the left, lift up the battery using the tab located on the top center of the battery.

 -

 -


-

Remove the hard drive from the SATA slot by tugging lightly on the ribbon cable to the right.

 -

 -


-

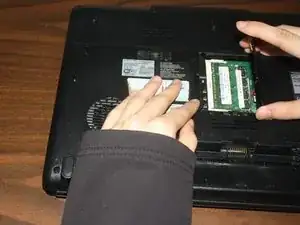

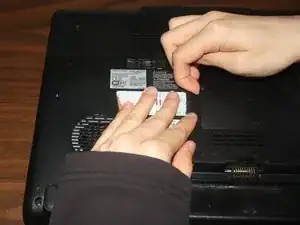

Unscrew the RAM cover and rotate the cover up to remove it. The screw should not be fully removed from the cover itself.

 -

 -


-

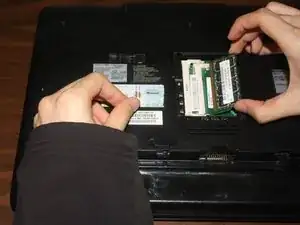

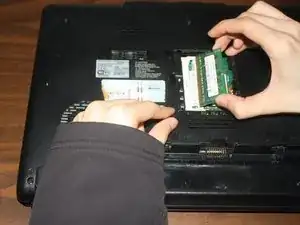

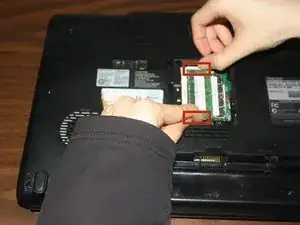

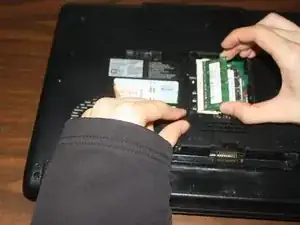

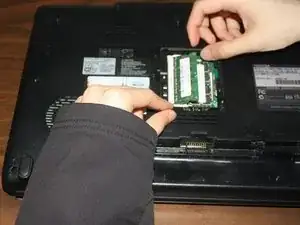

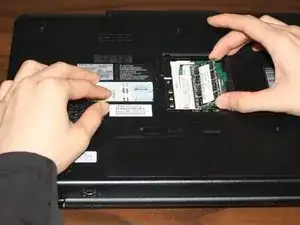

Push the small levers at the sides of the RAM module away from each other. The RAM module should automatically rotate upwards.

 -

 -


-

Locate the plastic strip at the top of the keyboard.
 -

Use a pry tool to remove the plastic strip.
 -

Using your hands pull out the rest of the plastic strip.

 -

 -


-

Use a phillips head #0 screwdriver to remove the two 3.75mm screws holding the keyboard in place.

 -

 -


-

Lift up the top of the keyboard to remove it.
 -

Unlock the ribbon cable by pushing on the locks that are located on both sides of ribbon cable.
 -

Unplug the ribbon cable from the laptop.

 -

 -


-

Remove all 6.75mm screws from the bottom of the laptop. The 3 screws under the battery are 3.75mm.
 -

Remove all 5.25mm screws from the top of the laptop.

 -

 -


-

Unplug the wires highlighted with red squares.
 -

Using a pry tool and yours hands to remove the motherboard cover.

 -

 -


-

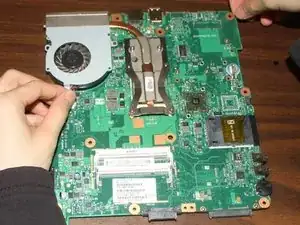

Unscrew all the screws indicated by the red circles (The bottom two screws are 10.75mm and the top screw is 5mm).
 -

Unplug all the wires indicated by the orange squares.

 -


To reassemble your device, follow these instructions in reverse order.
