Toshiba Satellite L55t-B5271 Screen Replacement

Written By: Carson Longendorfer
  • Comments: 0
Toshiba Satellite L55t-B5271 Screen Replacement

Difficulty

Difficult

Steps

10

Time Required

25 - 30 minutes

Introduction

This guide will assist you in removing the display of your device. You'll need to be extra careful when removing the glass screen from your device.

  1. 1BFfNXAtPKFBJmqt
    1BFfNXAtPKFBJmqt
    B1PUNPA4McvEHiVy
    hDiN52dVVruo6sZM

    • Make sure you turn the laptop off first.

    • Close the laptop lid and flip it over so that Toshiba logo is facing down.

  2. EiZBkC14YutbeY6k
    EiZBkC14YutbeY6k
    PekJaZAiuDvEvg4M

    • Remove the two 6.5 mm Phillips head screws indicated using a Phillips #00 screw driver.

  3. skdvSognqLBe5eEy
    skdvSognqLBe5eEy
    65xWCmJvsfucGIQU
    JZThWWiEdMZKcWGG

    • Once the screws are removed, slide the battery pack out of the computer.

  4. dt5CRUPBgweFbOPY
    dt5CRUPBgweFbOPY
    1LfJSvja61bJgfNY
    WhDKjcCA1WyYJBjG

    • Remove all 6.5 mm Philips head screws on the back cover of the laptop with a Philips #00 screwdriver.

    • Use the plastic opening tool to remove the back cover from the laptop.

    • Be aware that static discharge can cause damage to sensitive electrical components within the computer. To avoid this you can wear an anti-static wrist strap.

  5. vFJroyHJwReKKfwQ
    vFJroyHJwReKKfwQ
    OyNrCRJWLYdOxucA
    lQhFWJbJW5J51eqC

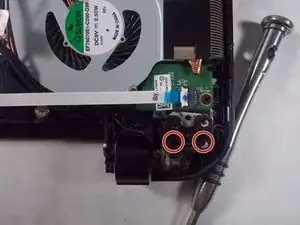

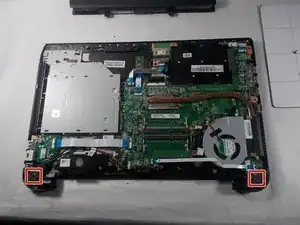

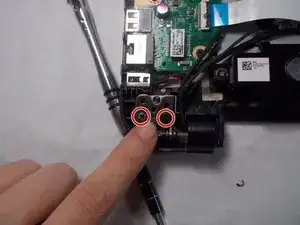

    • Unscrew the four 6mm screws from each of the laptop hinges using a Philips head #00 screwdriver.

  6. eORBXmHoOLHRpwQK
    eORBXmHoOLHRpwQK
    kVitewhhZwpqSVfy
    jFOPgdl5JJxQjHCx

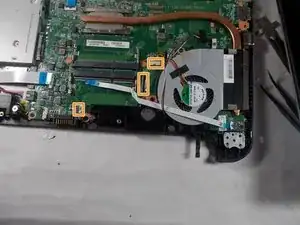

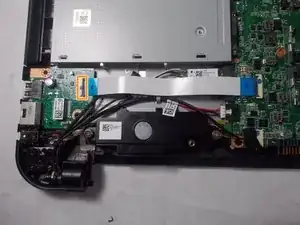

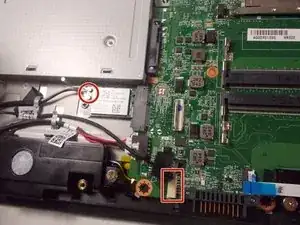

    • Disconnect connect the ribbon marked in red.

    • Disconnect all ribbons and cables marked in orange.

  7. SKkHmIg11MZGEMAW

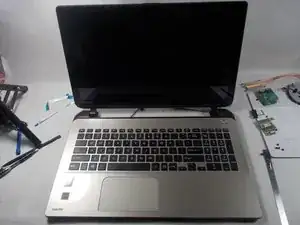

    • Flip your laptop back to the front.

    • Lift up the screen cover.

  8. uvDlqD1t33FUskEv
    uvDlqD1t33FUskEv
    AAJWGGQiMLgoiXfX

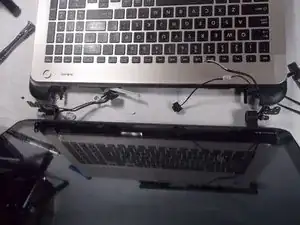

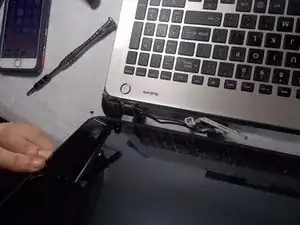

    • Gently pull the screen to disconnect the monitor from the hinges.

  9. 5ayMfNHwfFBGVRfv
    5ayMfNHwfFBGVRfv
    TqeefKPgiZ4uNdPP
    MEQv21Ks5CVrEHaC

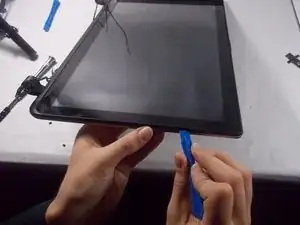

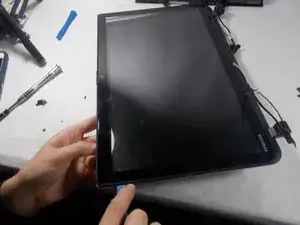

    • Use the plastic opening tool to pry the plastic covering off of the monitor.

    • Be careful not to break the glass, as this can cause injury.

  10. OVdfAEvStLQMicMV
    OVdfAEvStLQMicMV
    CUbkKpZOGHnEXBBE
    SATK1fdEWbJ32bwI

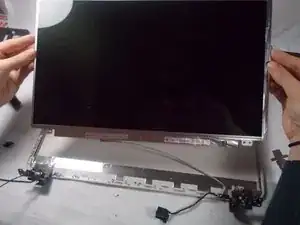

    • Remove the four 3mm Phillips head screws with a Phillips #00 screwdriver.

    • Gently remove the screen from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
