Toshiba Satellite L655D-S5095 CD/DVD Drive Replacement

Written By: Torey
  • Comments: 0
Toshiba Satellite L655D-S5095 CD/DVD Drive Replacement

Difficulty

Easy

Steps

5

Time Required

3 minutes

Introduction

This guide will help you replace your CD drive if you've determined that it is no longer working.

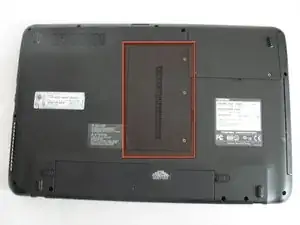

  1. X2yJyuUcQfFcbItC
    X2yJyuUcQfFcbItC

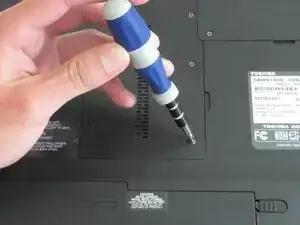

    ZxEVDrfbC2vPa1KR

    • Unscrew the three 4.6 mm screws holding the panel using a #1 size Phillips head screwdriver. The panel is centered on the bottom of the laptop.

  2. MrGyLi1hrhw4RSei

    • Remove the panel, firmly lifting from the indent. It is recommended that you leave the screws in the panel.

  3. N4TFn6xZYopNWiHg

    • Unscrew the 3.9 mm screw located at the bottom right of the panel.

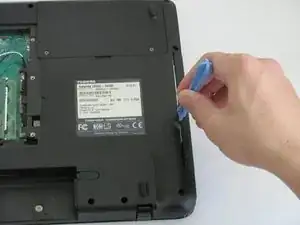

  4. ZAZVOpe3foODJWcX

    • Use a plastic opening tool to pry the CD drive out of the casing.

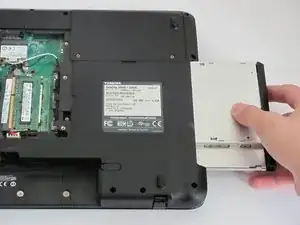

  5. PhWyEnIU1kxydZPw

    • Once the CD drive is out far enough to grip, pull the CD drive out to the right.

Conclusion

To reassemble your device, follow these instructions in reverse order.
