Toshiba Satellite L755-S5244 Motherboard Replacement

Written By: Anthony Buschini
  • Comments: 0
Toshiba Satellite L755-S5244 Motherboard Replacement

Difficulty

Difficult

Steps

10

Time Required

5 - 15 minutes

Introduction

To replace the Satellite L755 motherboard you will need a Phillips (PH0) screwdriver. The motherboard is fragile and should not be bent or pried away from other parts or forced into place since it may break.

  1. sajt5gfLOXIhHeGP
    sajt5gfLOXIhHeGP
    Zb4alJkQfdEPePPs

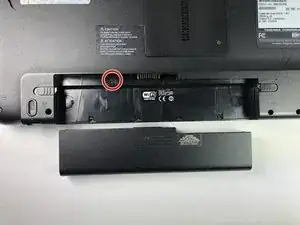

    • Begin by unscrewing the screw located underneath the battery.

    • Then, unsnap and remove the bar above the keyboard.

  2. gOWaoCE2fRhP5WQX

    • Unscrew the four 4mm Phillips #0 screws beneath the bar.

  3. pekRVR4yQiu6YsIN
    pekRVR4yQiu6YsIN
    ifJEuYnkLyrNWFvL

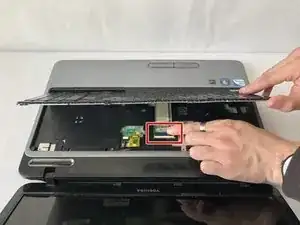

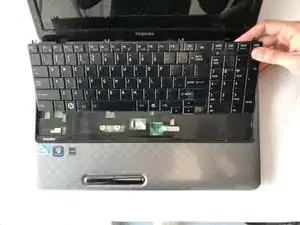

    • Pull keyboard up and partially out.

    • Detach conductor ribbon.

    • Slide keyboard out completely.

  4. tRBZtWyKUyGg3Jgp

    • Before anything start by disconnecting the battery.

  5. oUI5dYw4siWRPwnc
    oUI5dYw4siWRPwnc
    EIFCPExvHgLAPRDw

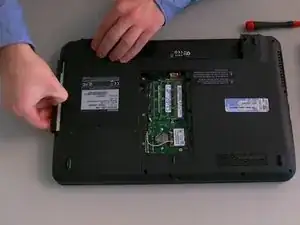

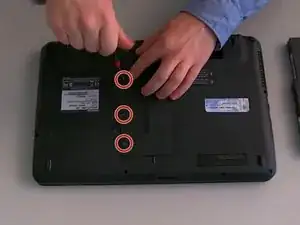

    • Next, unscrew the RAM cover and carefully remove it. Then, locate and unscrew the optical drive screw.

  6. CgGOCE1KofwijKiC

    • Carefully remove the optical drive.

  7. Zwf2WijGfpXyfGdv

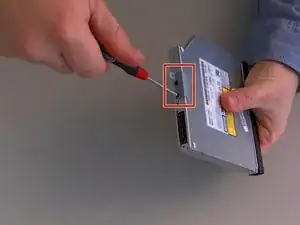

    • Finally, detach the mounting bracket from the optical drive in order to attach it to the new optical drive then follow the steps in reverse to reassemble it.

  8. RTeLy5UhJLNFEWfK

    • Carefully remove the 2 conductor ribbons.

    • Do not tear the yellow tape covering the upper conductor ribbon if possible.

    • The lower right ribbon may be removed at either the left or right ends by flipping up the black tab.

  9. ZyTVGjqApgIglAkJ

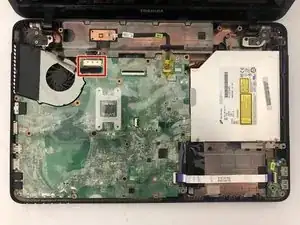

    • Remove the indicated conduit by gently pulling it away from the motherboard.

  10. YgMaANEnehbL4T32
    YgMaANEnehbL4T32
    ewRmJ4qTUuV3uWJN
    IDMeeRolMNnO2xi6

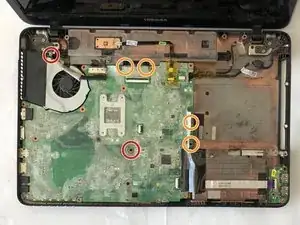

    • Remove the 5mm Phillips #0 screw in the middle of the motherboard, and the 4mm Phillips #0 screw on the upper left near the fan.

    • Remove the four 4mm Phillips #0 screws under the edge covering flaps.

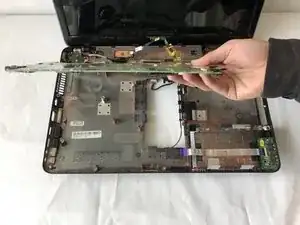

    • Carefully lift out the motherboard and fan.

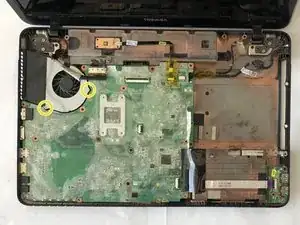

    • To detach the fan, remove the two 2mm Phillips #0 screws.

Conclusion

To reassemble your device, follow these instructions in reverse order.
