Toshiba Satellite M45 Cooling Unit Replacement

Written By: Stephen
  • Comments: 0
Toshiba Satellite M45 Cooling Unit Replacement

Difficulty

Difficult

Steps

4

Time Required

30 minutes

Introduction

This guide describes how to remove the cooling unit of the Toshiba Satellite M45 laptop.

  1. cOsYXsvAsfSLILUR
    cOsYXsvAsfSLILUR
    3PBLBUSi5ELQuykK
    ZelKW5Hld3oNYXn2

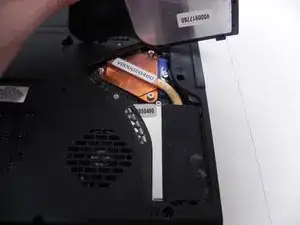

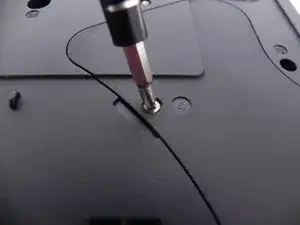

    • Remove the cover from the cooling unit.

  2. 55AdH5Jy5SiMbVC5
    55AdH5Jy5SiMbVC5
    x5QYkuo53QZNy2nN

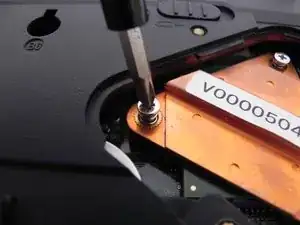

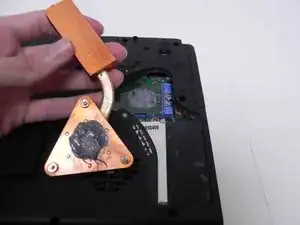

    • Unscrew the copper heat-sink using a #1 screwdriver, and then lift it free. Do not get any thermal grease on any components. This part can now be replaced.

  3. RM4U3LriQTw612Qj

    • Follow the tear-down guide until you have access to the fan unit on the motherboard.

  4. CAfWsF1YCZEPF5f3
    CAfWsF1YCZEPF5f3
    B5XAvkKGyfBJPvdR
    jvEhbqRofotTmUgQ

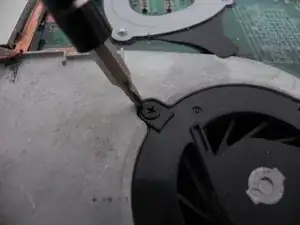

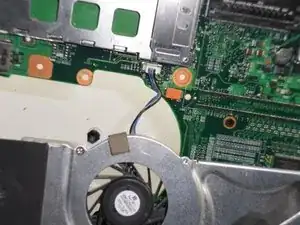

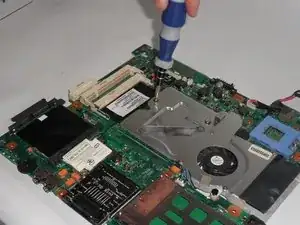

    • Unscrew the fan unit from the motherboard using a #0 screwdriver. Once the fan is unscrewed and unplugged from the motherboard, it can be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
