Toshiba Satellite P205D-S8804 Keyboard Replacement

Written By: Caroline Camp
  • Comments: 4
Toshiba Satellite P205D-S8804 Keyboard Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 6 minutes

Introduction

This is a guide to replace a malfunctioning keyboard. This guide will teach you how to unscrew your keyboard and remove the ribbon cable to allow you to replace the keyboard.

  1. Q2DZTC2CFChn22wL

    • Place the laptop with the screen facing you and grab the opening tool.

    • Insert it into the top corner of the keyboard and slide it to the right along the length of the keyboard.

    • You will feel the popping sensation as it slides along.

  2. 5wLLiblVHNktAr2C

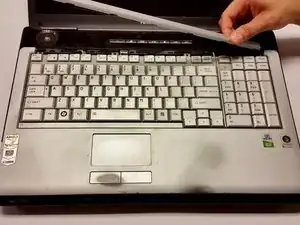

    • Lit up the left side of the small plastic bar at the top of the keyboard.

    • Be careful when removing it, because you will need to apply a bit of force .

  3. RTNsUZFAa2mNp5HA

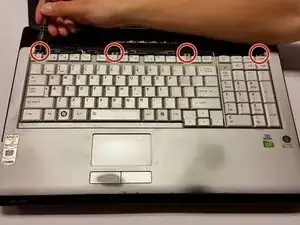

    • Use a PH0 screwdriver to unscrew the 4 screws at the top of the keyboard.

    didn't mention length of screws

    Andy Feng -

  4. QZFn3Ajao4x2TicG

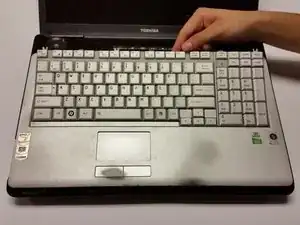

    • Lift up the keyboard and pull it toward the screen.

    • The keyboard will still be connected to the motherboard by a ribbon cable.

    "away from your body" might be redundant/confusing

    Andy Feng -

  5. rTSShZqwMTwBUJES
    rTSShZqwMTwBUJES
    SUc2CfPaf1sXq1Bk

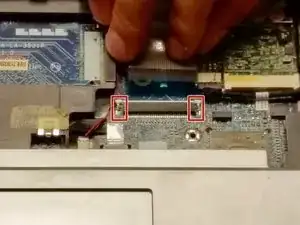

    • To remove the ribbon cable, push upward on the small tabs located on either side of the ribbon.

    The ribbon mentioned is attached to a ZIF connector, so need to guide through removal from ZIF

    Andy Feng -

  6. JtOqyAEyQlKJIJgj

    • Once the ribbon is released the keyboard can be removed .

Conclusion

To reassemble your device, follow these instructions in reverse order.
