Introduction
Use this guide to remove the Toshiba Satellite P55t-A5116 Power Jack.
Tools
Parts
-


-

Gently pry off the bottom case with the plastic opening tools.
 -

Find the seam between the back case and the rest of the laptop casing.

 -

 -


-

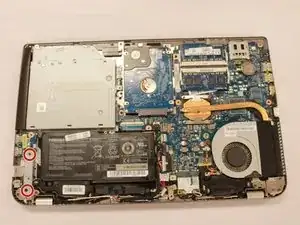

Use the #PH0 screw head, remove 4 (5.7mm) screws.
 -

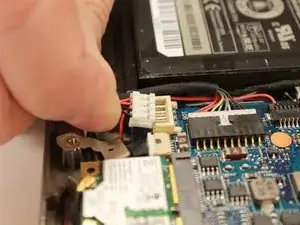

Unplug the battery's 10 pin connector and gently lift the battery out of the laptop.

 -

 -


-

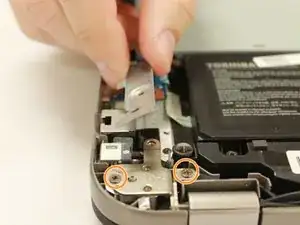

Using the #PH0 screw head, remove 2 (5.7 mm) screws.
 -

Remove metal plate.
 -

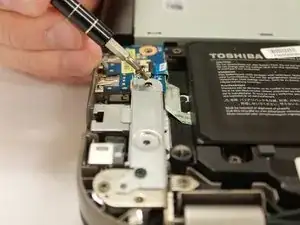

Using the #PH0 screw head remove 1 (5.7mm) screw and 1 (4.15mm) screw.

 -

 -


-

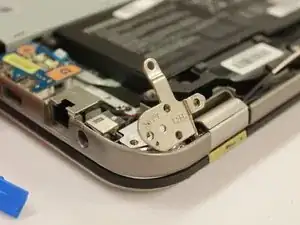

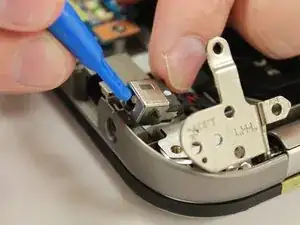

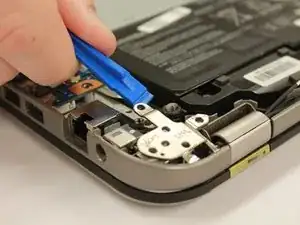

Gently pull up the power jack. Follow the cord until you reach the connector.
 -

Unplug the 4 pin connector and remove from laptop

 -


To reassemble your device, follow these instructions in reverse order.
