Introduction
Use this guide to remove the Toshiba Satellite P55t-A5116 RAM.
Tools
Parts
-


-

Gently pry off the bottom case with the plastic opening tools.
 -

Find the seam between the back case and the rest of the laptop casing.

 -

 -


-

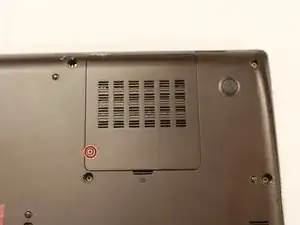

Locate the RAM cover on the back of the Laptop.
 -

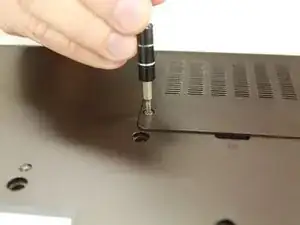

Using the #PH0 screw head, remove 1 (5.7mm) screw.
 -

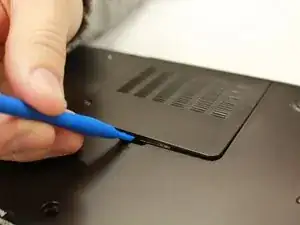

Use the plastic opening tool to remove the RAM cover.

 -

 -


-

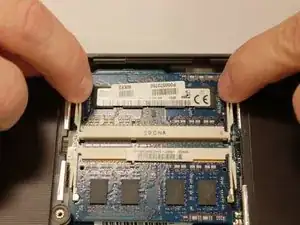

Pull out the latches on either side.
 -

The RAM should pop up.
 -

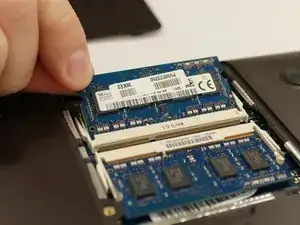

Remove the RAM.
 -

Repeat for other side.

 -


To reassemble your device, follow these instructions in reverse order.
One comment
I’m confused… it only seems like Step 4 and Step 5 are necessary. Does the battery need to be removed before replacing the RAM? If that’s why Steps 1-3 are there, there’s a lot of steps/information missing. It just goes from “take off the bottom case” to “remove the RAM cover of intact laptop”.
Douggy -
