Toshiba Satellite S55T-B5335 Wi-Fi Adapter Replacement

Written By: George Gillespie
  • Comments: 1
Toshiba Satellite S55T-B5335 Wi-Fi Adapter Replacement

Difficulty

Easy

Steps

8

Time Required

6 minutes

Introduction

The Wi-Fi adapter receives a signal from a wireless router and gives the laptop the ability to connect to a network and internet without the use of wires. Please refer to the Wi-Fi Troubleshooting Guide to determine if your Wi-Fi adapter needs replaced.

  1. qXYWdLPG6KYQT3Jf

    • Remove the two 7 mm Phillips #1 screws that hold the battery in place.

  2. 22NOxfwqYBWUPlrs
    22NOxfwqYBWUPlrs
    CARh1lwcVNDyBZHu
    GY6YNZXcYernCXhH

    • Pull the battery from laptop.

  3. 6WLAUEJAHdAonSU1
    6WLAUEJAHdAonSU1
    k1gloK4g2HOaeBpC

    • Remove the ten 7 mm Phillips #1 screws that secure the back cover.

  4. iJgaav4o6Fl5R5Zr

    • Wedge the tip of a plastic opening tool between the back cover and the metal frame.

    • Twist the plastic opening tool, while wedged, in order to release the retaining tabs from the frame.

    • Repeat these steps in a circular pattern around the laptop to release all retaining tabs.

  5. w5vlWaUh3UB4QOuD

    • Once all retaining tabs are released from the frame, you can pull up on the back cover to remove it.

  6. VOcxRXVUwR4fSEMg

    • Using the pointed end of the Spudger, gently disconnect the antenna (white and black wires) from the Wi-Fi adapter.

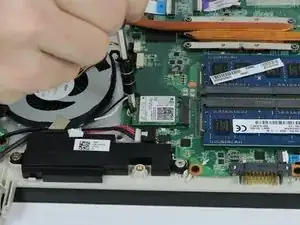

  7. OOAaEbryVoVAZheJ

    • Remove the single 4 mm Phillips #1 screw holding the Wi-Fi adapter in place.

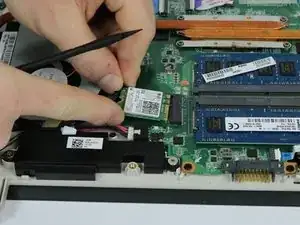

  8. idPWA52UTBge1BH1

    • While grabbing the Wi-Fi adapter on both sides, gently pull away from the socket in the direction of the removed screw.

Conclusion

To reassemble your device, follow these instructions in reverse order.
