Toshiba Satellite U405D-S2902 Display Replacement

Written By: Brandon Kirklen
  • Comments: 0
Toshiba Satellite U405D-S2902 Display Replacement

Difficulty

Moderate

Steps

7

Time Required

30 minutes

Introduction

  1. hFJPvDLpjYJw6DbS

    • Use tweezers to remove the small rubber covers over the screws on the top and bottom of the laptop case.

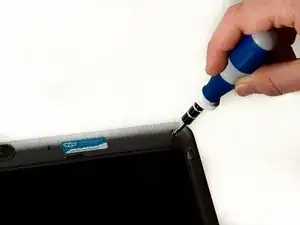

  2. UOOSSpGaBYKCKJ5Y
    UOOSSpGaBYKCKJ5Y
    LI2GbFTYIUtKAuVL

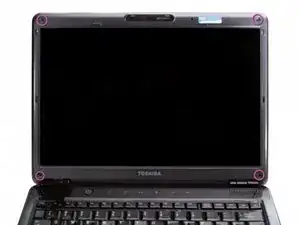

    • Use a #1 Phillips screwdriver to remove the 3mm screws located on both sides of the top of the laptop as well as the lower corners.

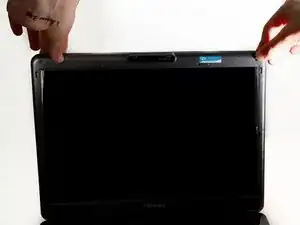

  3. LgyKfiCq4COZfHdj
    LgyKfiCq4COZfHdj
    mGZslOOmXYGnwabR
    yEMNqQDRrpFvAUdE

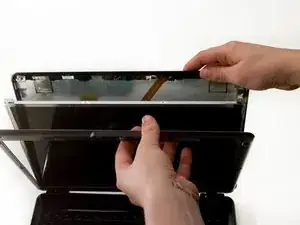

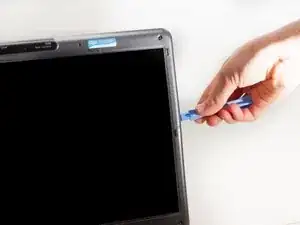

    • Use a plastic opening tool to separate the front plastic panel from the back side of the top of the laptop.

    • Carefully pull the top away from the back.

  4. ClCQsS2ZBkGRnONt
    ClCQsS2ZBkGRnONt
    oHLsNwtEvEZK3wv1
    OKUP6IqMqjWQAo25

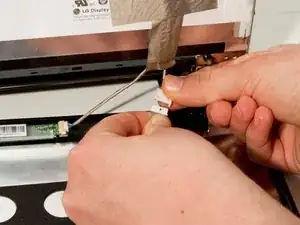

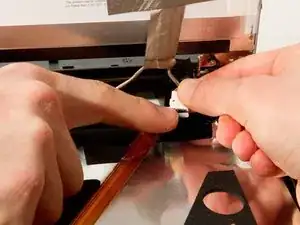

    • Turn the laptop around.

    • Remove the webcam/microphone data cable.

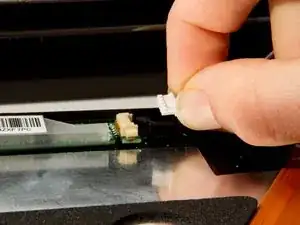

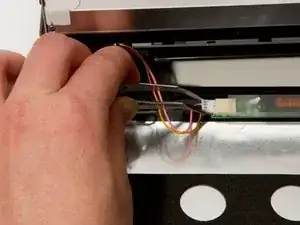

  5. KpgKBvoMZTEXXJDR
    KpgKBvoMZTEXXJDR
    lK3fP16FPULZAV2d

    • Remove the lower lighting power supply.

    • Remove the signal light power supply and data cable.

  6. FWJaK2gdjVlYFiNb
    FWJaK2gdjVlYFiNb
    KBZA12FMnhBOgcoY

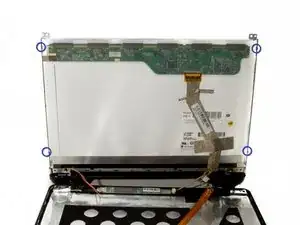

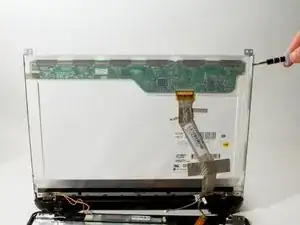

    • Locate and remove the four 2mm #1 Phillips screws around the sidewalls of the display.

    • After removing the last screw, the screen will be very loose, be sure to keep a hand on it to prevent it from damaging the keyboard.

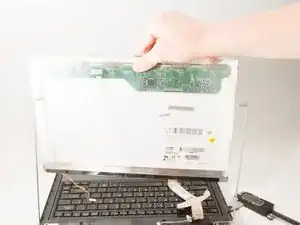

  7. 2UyRWBKrUZKXuOvg
    2UyRWBKrUZKXuOvg
    11BnR6vYcheVFHid

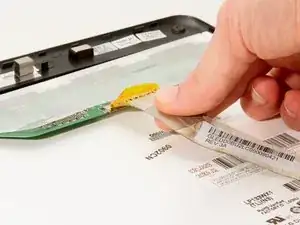

    • Carefully remove the screen from the side brackets.

    • Remove the LCD ribbon connector from the display.

Conclusion

To reassemble your device, follow these instructions in reverse order.
