Toshiba Satellite U925T-S2120 Battery Replacement

Written By: Sonia Shah
  • Comments: 2
Toshiba Satellite U925T-S2120 Battery Replacement

Difficulty

Easy

Steps

6

Time Required

15 - 20 minutes

Introduction

In this guide you will learn how to remove the battery of your Toshiba Satellite U925T-S2120. If your battery is broken, you may need to replace it. Before beginning this guide you should have all tools that are listed.

  1. I4i1dIQafR2o4RyZ
    I4i1dIQafR2o4RyZ
    Pmj3csqMGp1opa1a

    • Use tweezers to remove the nine rubber grip pads on the back panel of the laptop.

  2. VOSTcnC56wBCuFVS
    VOSTcnC56wBCuFVS
    txMgsNJF35X3jMDr
    tSjFKhEVb4dloBTW

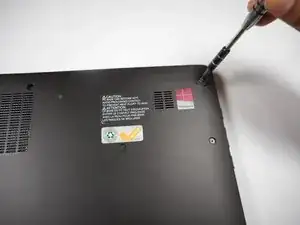

    • Use a Philips #1 screwdriver to remove the nine 5.8 mm screws highlighted.

    • Remove the two 6.8 mm screws. Set aside.

    Notice: The U920T need a T7 screwdriver for the top middle screw.

    Michael Jakobsen -

  3. ZWiXQWZgyKiN2HlL
    ZWiXQWZgyKiN2HlL
    N34pvmG1GUZ5Klw3

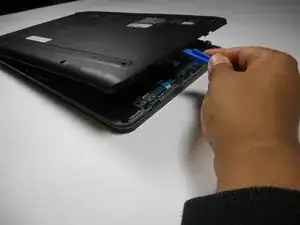

    • Remove the back panel by inserting the plastic opening tool into the seam of the laptop and pushing downwards.

  4. 5gRODwLAEWTm1rHN

    • Use the screwdriver to remove the two 3.4 mm screws highlighted.

  5. IpEVGKY1DFYnfpFX
    IpEVGKY1DFYnfpFX
    2KxmVrofAbw3MgFi

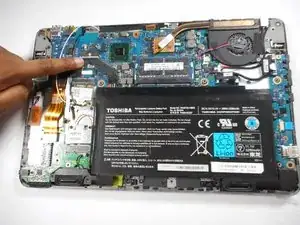

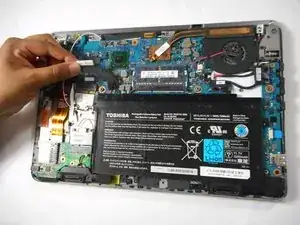

    • Remove the black cable from the connector. Pull in the same direction as the black wiring runs.

    • Excessive force in this step may damage the wires and/or your device.

  6. ruBWkm6MXKaSDWjT
    ruBWkm6MXKaSDWjT
    PRnTxtTWu3CPVIVJ

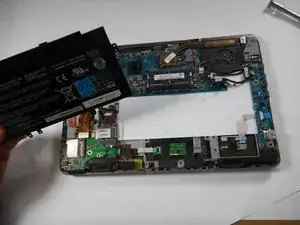

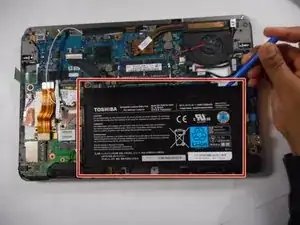

    • Lift and remove the battery from the device with the iFixit opening tool.

Conclusion

To reassemble your device, follow these instructions in reverse order.
