Toshiba Tecra Z50-A Motherboard Replacement

Written By: Luis Juen Baez
  • Comments: 1
Toshiba Tecra Z50-A Motherboard Replacement

Difficulty

Difficult

Steps

25

Time Required

1 hour

Introduction

  • The motherboard of a laptop is a vital piece of your computer, if you find that the performance or functionality of your device is limited, then it may be time for the part to be replaced.
  • If you are positive that the motherboard of your Toshiba Tecra z50-a is damaged or causing issues, then it’s time for it to be replaced. Follow this guide to learn how to replace the motherboard of the laptop.
  • Before disassembling the laptop, ensure it is powered off and nothing is plugged into the device.
  • Remove any rings, bracelets, or any other metal objects from your hands.

  1. RacYrT4ldNtotZen

    • Turn off the laptop.

    • Flip the laptop over so the bottom is facing upwards and the hinges are closest to you.

    • Remove the fifteen 5 mm screws from the back panel using a Phillips #0 screwdriver.

  2. mmyLxxRmCQ4kccxM

    • Lift up back panel using your hands and remove it from the rest of the laptop.

  3. 1emejiB4NGAcmQih

    • Lift the plastic covering over the battery plug.

  4. WARAXXQ25wmF4JOR

    • Pull the wired cable up towards the top of the laptop to disconnect it from its socket on the motherboard.

  5. YQ6JmMEYEyUSUTbI

    • Remove the single 2 mm screw from the corner of the laptop using a Phillips #0 screwdriver.

  6. Pj21i1PEUNGbaLZP

    • Remove the three 3 mm screws from the battery using a Phillips #0 screwdriver.

  7. Y5hQ5ubZOX6ivlpW

    • Lift up on the battery with your hands and remove it from the laptop.

  8. RuLfWRCiGHocvyVU

    • Remove the four 3 mm screws from the heat sink using a Phillips #0 screwdriver.

  9. 3DqOeTiEFmraPJAy

    • Remove the two 4 mm screws from the fan using a Phillips #0 screwdriver.

  10. ugPrfGFcIhgGJdwL

    • Remove the heat sink from the laptop.

  11. adyJGNpn1QuDSNPf

    • Pull towards the bottom of the laptop to disconnect the fan cable from its connector on the motherboard.

  12. VGvCwmnlYtv3JOp5

    • Lift up on the fan and remove it from the laptop.

    • When replacing the fan and heat sink, be sure to reapply thermal paste.

  13. wsXPwFd3pKclDHZu

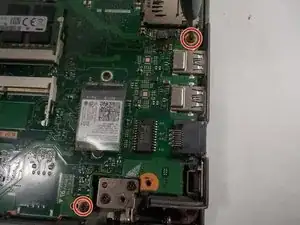

    • Remove the two 5 mm screws using a Phillips #0 screwdriver.

  14. D2iqsVYPHerwaBiA

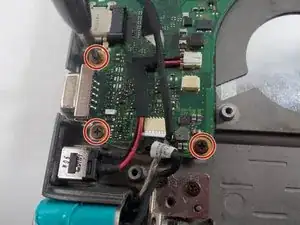

    • Remove the three 5 mm screws using a Phillips #0 screwdriver.

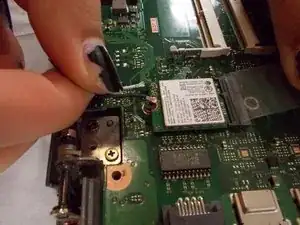

  15. ZHvIYCFeJnFsdLK2

    • Lift up on plastic covering over the Wi-Fi card.

    • Disconnect the black and white coaxial cables from the Wi-Fi card.

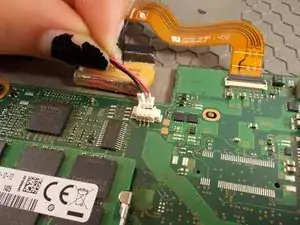

  16. WRh4qOVAgwtXwHUp

    • Unplug the bundled red and black cable from its connector on the motherboard.

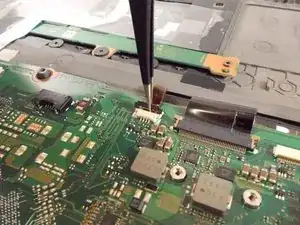

  17. Ws4dyTwIgSu3FPjq

    • Lift up on the black retaining flap using a pair of tweezers.

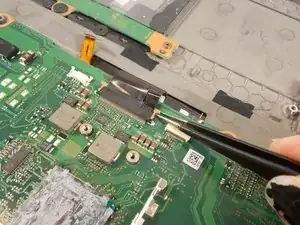

  18. fEijN3HovVQlgfYn

    • Push the tab on the right toward the top of the laptop.

  19. SZrQ2keZsQufXuRc

    • Push the tab on the left toward the top of the laptop.

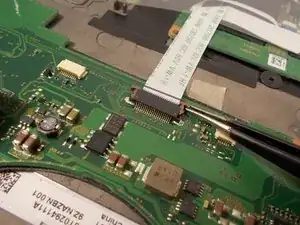

  20. cJLjIhvI1rjLOfIj

    • Push the tab on the right toward the top of the laptop.

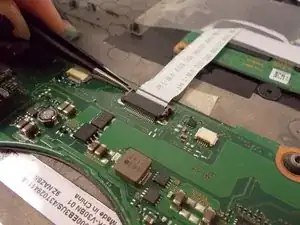

  21. SldjrGqeneOxQXrt

    • Push the tab on the left toward the top of the laptop.

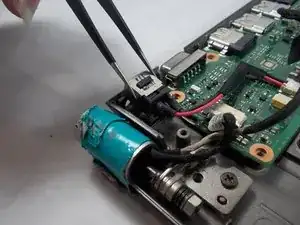

  22. niTwxrR3yPUJ6NAu

    • Lift up on the charging port with tweezers.

  23. BSMhjIYLYGgKrjw4

    • Lift up on the plastic tab.

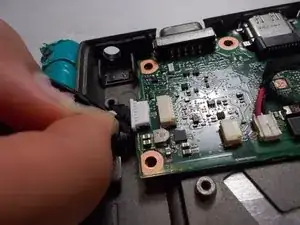

  24. gVeqJvwLANuve4C2

    • Pull plug towards the bottom of the laptop.

  25. 3QXyKVPK6plLv26V

    • Grab the middle of the motherboard with your hands and lift up to remove it from the laptop.
