Triggers Removal

Written By: Spencer Day
  • Comments: 1
Triggers Removal

Difficulty

Moderate

Steps

8

Time Required

20 - 30 minutes

Introduction

Use this guide to remove the triggers in your Asus ROG Ally.

  1. vqjOL4ArFHFYnWRd
    vqjOL4ArFHFYnWRd
    R35152aPXbWqJyIE
    RNWYTLOLBduXfPut

    • Let your device's battery drain below 25% before starting this repair—a charged lithium‑ion battery may catch fire if damaged.

    • Completely power off your device and unplug all cables.

    • Consider laying your device on a soft cloth to prevent scratching or damaging the screen during your repair.

  2. IIaUFJ63RLGmQ4Ui
    IIaUFJ63RLGmQ4Ui
    G1oNRVqSWLPJQuue

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

    • Use a Phillips #0 screwdriver to remove the five 17.2 mm‑long screws securing the top edge and bottom corners of the back cover.

    • Use a Phillips #0 screwdriver to fully loosen the remaining captive screw at the center of the bottom edge. This should create a small gap between the back cover and chassis.

    • Don't try to remove this screw.

  3. huPyGW1EUkBGsSTE
    huPyGW1EUkBGsSTE
    M6IvvHetKHCpTy4U
    qi5vI6QX1xftg3B1

    • Insert the flat edge of an opening pick between the bottom edge of the back cover and chassis, near the captive screw.

    • Angle the pick upward and push it under the back cover.

  4. fFjsjRQ13SIhxyu3
    fFjsjRQ13SIhxyu3
    lY53VEwZPpoX4qpK
    q2nIrM1nNHBw6RmS

    • Plastic clips secure the perimeter of the back cover. You should feel and hear them release during this step.

    • Slide the opening pick along the bottom edge and around the corners of the back cover to release the clips securing it.

    • Keep the pick at an upward angle under the back cover to help release the clips.

  5. ahsmjIA4qJNspYWG
    ahsmjIA4qJNspYWG
    B5LPMX4LkZDJYRC3
    TZXfUcBeqUFOe1ZG

    • Lift the bottom edge of the back cover off the chassis to release the remaining clips.

    • Remove the back cover.

    • During reassembly, lay the back cover onto your device and firmly push down around the perimeter to engage the clips.

  6. ZRGlIggMeZpcAIdU
    ZRGlIggMeZpcAIdU
    xqpnunuWvlDpJOwK
    ByUuAYJccPJNOYFy

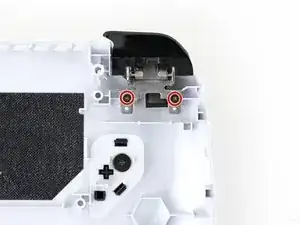

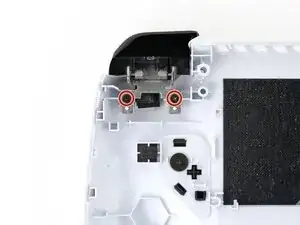

    • Use a Phillips #00 screwdriver to remove the two 3.4 mm‑long screws securing each trigger (four screws total).

  7. hegxFlvUs5L5CJI6
    hegxFlvUs5L5CJI6
    hGXcLmqriiNYvLnI
    HUHN6DUtttkqcSYo

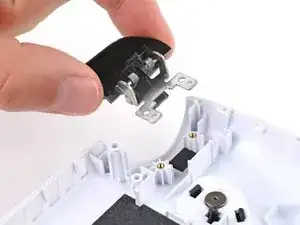

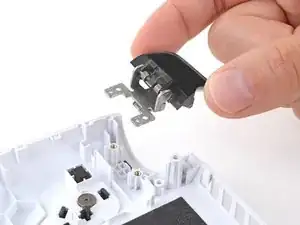

    • Pull the triggers straight up and out of their recesses to remove them.

    If the trigger has stopped working, the most likely culprit is the spring has collapsed and the magnets on the trigger are overwhelming the sensor on the daughter board. Once the trigger is removed, you can either replace it altogether with a new part or attempt to repair the old part. To attempt repair, simply GENTLY apply pressure to the spring for a few seconds to open it. Be sure to calibrate the trigger once reinstalled, this will allow you to test functionality. Replace the trigger as necessary from this point

    Chris Frazier -

  8. pbgA3kEIyDweOQBP

    • During reassembly:

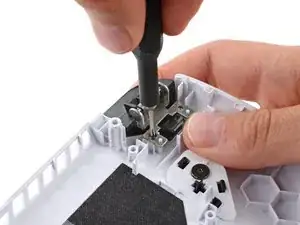

    • Compress the trigger and firmly push it into place on the chassis so the cutouts on the hinge go over their alignment posts. The trigger should stay in place.

    • Keep the trigger compressed and install the two screws.

    • Test the trigger before continuing reassembly. If it's not working properly, remove the trigger and make sure it's properly aligned on the hinge.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
