VTech Little Apps Tablet LED Replacement

Written By: Dakota Wiersma
  • Comments: 0
VTech Little Apps Tablet LED Replacement

Difficulty

Difficult

Steps

9

Time Required

30 - 40 minutes

Introduction

The device LEDs help light the screen. This guide will assist you in removing them and replacing them.

  1. 6M2n3C52gIBeUPcE

    • Remove the 9.9 mm screw covering the batteries with a PH1 driver head.

  2. XdRbHs55FDkuGhmG

    • Use a plastic opening tool to pry the batteries out of their holding.

    • If replacing your batteries with new ones, be careful to insert them as indicated on the device.

  3. s52bU2BSIwMuQOLJ
    s52bU2BSIwMuQOLJ
    PUNcVn3POwp6JG36

    • Position the VTech Little Apps Tablet face-down on a flat surface so that you can clearly see the back of the device.

    • Remove all seven 9.6 mm screws located around the perimeter of the back cover with a PH1 driver head.

  4. kLOS3sM1ZqJpGKVT
    kLOS3sM1ZqJpGKVT
    GURbuIPE1wrcppCS

    • Gently remove the back cover then flip it 180 degrees so that the back cover of the device is now face-down.

    • Proceed with caution as there are wires attaching the back cover to the front cover of the device that could be easily detached.

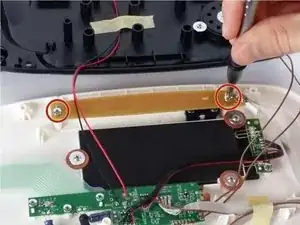

  5. YZCJLSoOPDJioLru

    • Unscrew the two 7.3 mm screws using a PH0 driver head.

    • Gently lift the beige circuit board and set aside.

    • Be sure to not damage the wires connecting the circuit board to the motherboard, you are only creating space to work in.

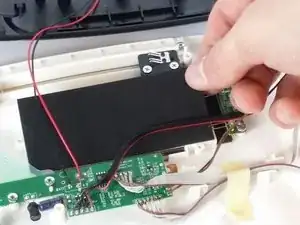

  6. icWtwkxOPnUlLPYC
    icWtwkxOPnUlLPYC
    3fTbMgPfGGhwFXBC

    • Unscrew three 7.3 mm panhead screws with the PH0 driver.

    • Remove the red-brown washer after removing the screws.

    • Remove the black foam insert and set aside.

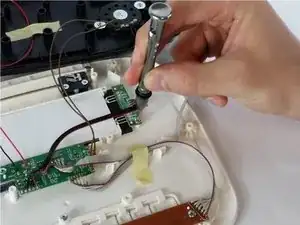

  7. LrJHhZ5xYBJPIXHA

    • Unscrew the 7.3 mm screw fastening the LED circuit board to the device shell with a PH0 driver head.

    • Be careful when rescrewing circuit boards. Too much pressure or too tight of screws could damage them.

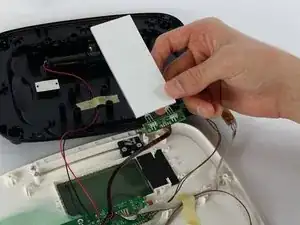

  8. YBVxTtVIItpq1xFj

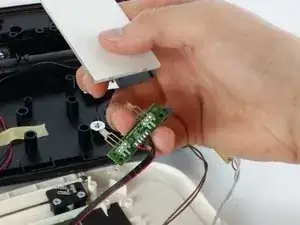

    YBVxTtVIItpq1xFj
    oYNOORMF4XpBU2qE

    • Gently lift both LED circuit board and the white glass light refractor panel away from the device.

    • Separate the LED circuit board and light refractor panel by gently pulling apart. Place the light panel to the side.

    • Skip the next step if you are proceeding with this guide as a part of the Screen Replacement.

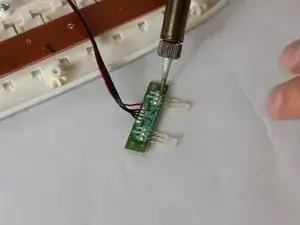

  9. EbSyiwwHQWbOidNZ

    • Carefully desolder the LED leads (labeled "R", "+" and "B" on the circuit board) to disconnect the LED from the circuit board.

    • Replace the LED and solder the new connection to the LED circuit board.

    • Refer to the iFixit Soldering Guide for assistance.

Conclusion

To reassemble your device, follow these instructions in reverse order.
