VTech MobiGo Touch Learning System Case Replacement

Written By: Daniel Kresge
  • Comments: 0
VTech MobiGo Touch Learning System Case Replacement

Difficulty

Very easy

Steps

3

Time Required

2 minutes

Introduction

This guide will show how to take off the external case of the device.

  1. P4tgNGNP5KAfotOW

    • Remove the battery covers and the four batteries.

  2. ENhAVcTxAv2CpMSJ
    ENhAVcTxAv2CpMSJ
    POiVIGRsECMtGcLg

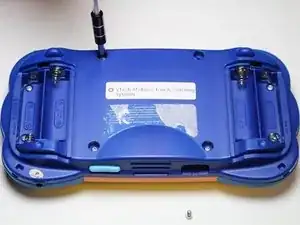

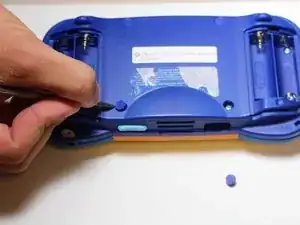

    • Remove the four plastic caps with a metal spudger to expose the 6.0 mm Philips JIS #0 case screws.

    • Remove the eight 6.0 mm JIS #0 case screws.

  3. RNsQPuKGIAPYJmVo
    RNsQPuKGIAPYJmVo
    mSPdBwJUoIkeHpHB

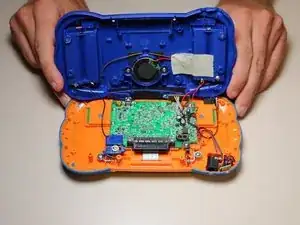

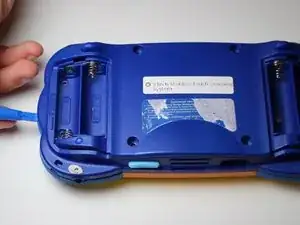

    • Using a plastic opening tool, separate the two pieces of the case carefully.

Conclusion

To reassemble your device, follow these instructions in reverse order.
