VTech MobiGo Touch Learning System Screen Replacement

Written By: Daniel Kresge

Comments: 2

VTech MobiGo Touch Learning System Screen Replacement

Difficulty

Moderate

Steps

12

Time Required

4 minutes

Introduction

This guide shows users how to replace the screen. By first taking the device apart until they can reach the screen so that they can replace it.

Tools

Step 1

P4tgNGNP5KAfotOW

Remove the battery covers and the four batteries.

Step 2

ENhAVcTxAv2CpMSJ

ENhAVcTxAv2CpMSJ

POiVIGRsECMtGcLg

Remove the four plastic caps with a metal spudger to expose the 6.0 mm Philips JIS #0 case screws.
Remove the eight 6.0 mm JIS #0 case screws.

Step 3

RNsQPuKGIAPYJmVo

RNsQPuKGIAPYJmVo

mSPdBwJUoIkeHpHB

Using a plastic opening tool, separate the two pieces of the case carefully.

Step 4

eIPAxYyVEp1TThhl

Remove the three 4.0 mm Philips J0 screws holding the "L" shaped brackets in place.

Step 5

NM4gBn1Co2pb3SPu

Remove the three "L" shaped brackets and the spring.

Step 6

VUXfqUXmqV1AY1oZ

Flip the device over and remove the three 4.0 mm Philips J0 case screws.

Step 7

fnDCA6BqincRdnQJ

Separate the front and back of the case.
Use a plastic opening tool if necessary.

Step 8

qQAW6EWBACQrHUsG

Remove the 4 (3.4 mm Philips J0) screws holding the screen in

Step 9

IgHVnyYNRCF4Js6K

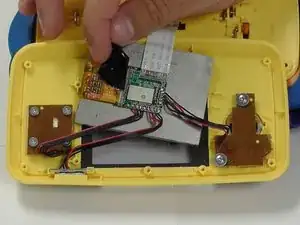

Remove the black tape

Step 10

jsMEEOYa3MTCSdk6

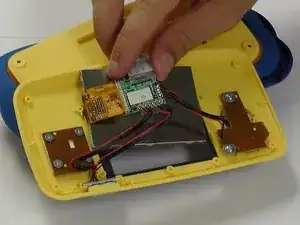

Remove the circuit board from the back of the screen.
The circuit board has double sided tape on the back side holding it to the screen.

Step 11

qMdsA1BGYqBADTDc

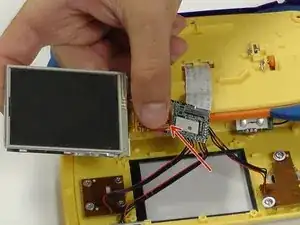

Peel the ribbon wire off of the circuit board. Now the screen should be free to remove.

mine i don’t know about

Jesse Eagan - 17/05/21

Step 12

1ZMcEf1tOPO6gyBH

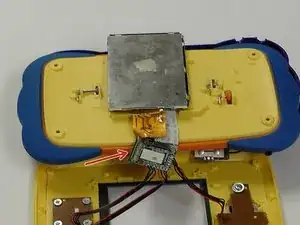

Resolder the new screens ribbon cable on the the circuit board.
Always be careful when soldering.

Conclusion

To reassemble your device, follow these instructions in reverse order.
