VTechCS6719-16 Button Replacement

Written By: Charles montes
  • Comments: 0
VTechCS6719-16 Button Replacement

Difficulty

Moderate

Steps

7

Time Required

5 minutes

Introduction

This guide demonstrates a walk-through of steps needed to completely dismantle the phone in order to locate the buttons and replace them with new ones.

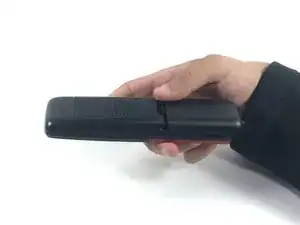

  1. ivWIjsT1cbCcxUNt

    • Remove the sliding back cover from case.

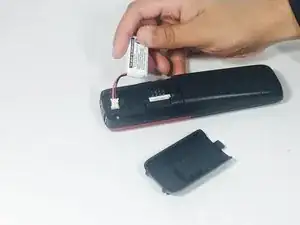

  2. atUf2MHlWxW1TnqZ

    • lift the battery and unplug the two pin cable from phone base.

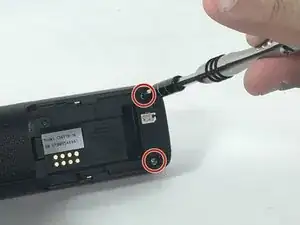

  3. aUXLVCNqwrklHoUr

    • Remove the two 10mm screws at the base of the phone .

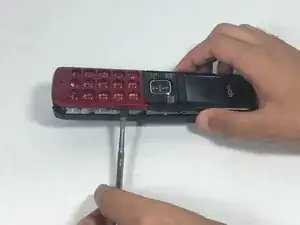

  4. dsLuLBOPabkYbpoE

    • Use the spudger along the edge using a firm but gentle lifting motion.

    • When doing this feel for the hooks that latch the phones front and back cases.

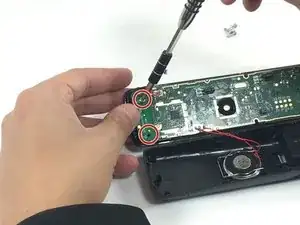

  5. qXnZW16BRmnbahvK

    • Unscrew a second set of 10mm screws to obtain access to the other side.

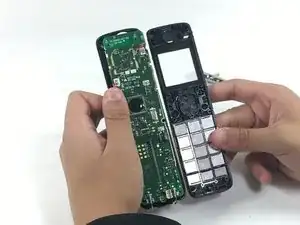

  6. HuFEyYxXNsmeJqHH

    • The front of the phone can now be placed to the side

    • You will notice the button covers, these display the numerical values and positions of each button

    • These can be placed aside as they will get in the way later.

  7. kxCTtMdnG4NoRwxC

    • Now the silicon pads for the phone buttons are exposed.

    • These can easily be removed by pulling away the pads from the circuit board.

    • To replace simply align the new pad onto the button positions.

Conclusion

To reassemble your device, follow these instructions in reverse order.
