Visual Land Prestige 7G Speaker Replacement

Difficulty

Moderate

Steps

4

Time Required

15 - 20 minutes

Introduction

The speaker can be replaced if it is damaged or broken. You will be able to find that the speaker is the problem if it is playing sound with a popping and static sound added, or if there is no sound coming from your device at all. This will help fix any issues with sound output for the device.

  1. oQ2U344kO1oNeau6
    oQ2U344kO1oNeau6
    jKmc2iYYe3EmP5IW

    • Lay your device face-down.

    • Use a Phillips #000 screwdriver to remove the two 4 mm screws next to the AUX port and microphone.

  2. Xu2mSRYpUd4fc2AG

    • Pry open the back-plate using a Jimmy.

    • Do this by inserting the tool into the fine thin line between the back-plate and screen at each corner of the device.

  3. 1DORsLp3MYtpiBiE
    1DORsLp3MYtpiBiE
    HuuwGymcNIuAdMrD

    • Lift off the backplate using your hand.

    • If the backplate is stuck, repeat the previous step to ensure all the edges are free.

  4. hk3sYKpV5UFPYRPJ
    hk3sYKpV5UFPYRPJ
    lnV5A5DPsyAYDDqt

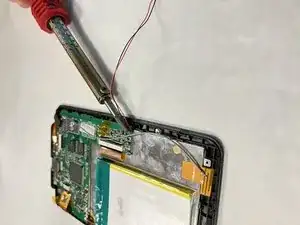

    • Take the soldering gun and place it on the black and red wires to melt the soldered conncetions.

    • Remove the speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
