Introduction
If your Voluas VL001 pet feeder's electric motor is working but your main drive gear isn't turning, you may have a problem with your motor assembly gears. This guide outlines how to replace them. It is a fairly simple process and can be done quickly.
-
-
Remove the lid to the storage tank by using the latch and lifting off.
-
Grab the food storage tank on both sides. Depress the tabs that say "Push" on them and lift the tank off.
-
-
-
Place your pet feeder upside down.
-
Squeeze the lock and remove the battery cover.
-
Remove the three 1.5V D alkaline batteries.
-
-
-
Remove four screws from the corners of the device using a Phillips #2 screwdriver.
-
Using the magnetic tip of the screwdriver, carefully lift the screw out of the hole.
-
-
-
Turn the device over so it is oriented right-side up.
-

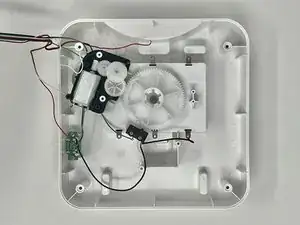

Lift the top part of the feeder off, exposing the mechanisms that run the feeder.
-
-
-

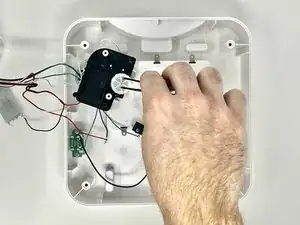

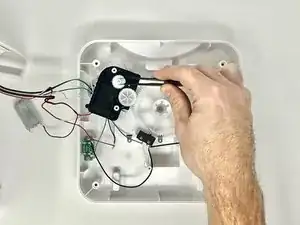

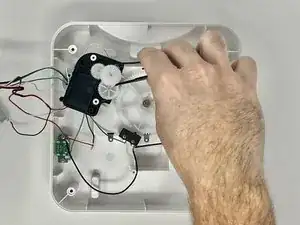

Using a Phillips #2 screwdriver, remove the six screws that hold the motor housing on to the device.
-
To reassemble your device, follow these instructions in reverse order.
