Wacker Compactor Plate VP1550W (2007) V-Belt Replacement

Written By: ZACHARY
  • Comments: 0
Wacker Compactor Plate VP1550W (2007) V-Belt Replacement

Difficulty

Easy

Steps

7

Time Required

10 minutes

Introduction

If your plate compactor isn’t vibrating but the engine is running fine, a great place to start is by inspecting the V-belt and replacing it if damaged. It is also good practice to inspect the V-belt regularly and to keep the V-belt housing clean in order to reduce wear and prevent the tool from failing when it is needed.

This guide is the same as “Wacker Plate Compactor VP1430AWAH 103 V-Belt Replacement,” as both machines are completely identical except for the size of the plate.

  1. YFuoynYeTlZBZxqO

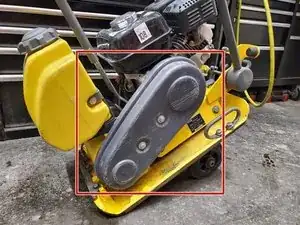

    • The V-belt is located in a large gray compartment on the left side of the machine

  2. jRK4DMFy6Qd2pLeb

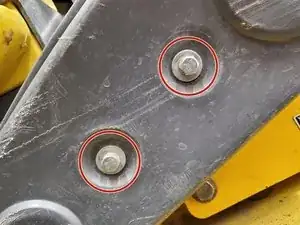

    • There are two 1/2 in bolts in the center of the belt guard cover that hold it on. Loosen them using the 1/2 in socket and the 3/8 in drive ratchet, but don't fully remove them

    • Fully removing the bolts will cause a small O-ring to fall loose inside the belt guard

  3. v1pWssAWaZC6KmLK
    v1pWssAWaZC6KmLK
    Nxl6WqUcxAnPxNuE

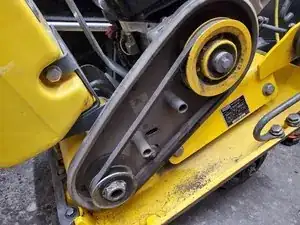

    • Remove the belt guard cover and set it aside

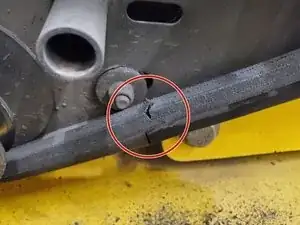

    • Rotate the belt slowly, inspecting for signs of damage such as the crack shown

  4. NnJwyBMxXcSxKH6I
    NnJwyBMxXcSxKH6I
    CQGvsN5KGg3uGySa

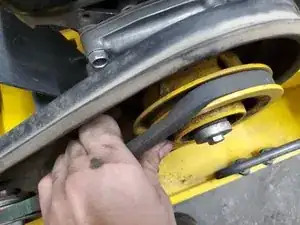

    • Pull part of the V-belt up and over the top of the large pulley with one hand

    • Maintain tension on the belt while using your other hand to rotate the pulley clockwise until the belt comes off. This will require a bit of force

    • Remove the belt slowly and be careful not to get your fingers stuck between the belt and pulley

    • Clean any dirt or residue off of the area where the belt rode on the pulleys to ensure the new belt doesn't get any unnecessary wear

  5. TZhPHoKtNApJANiA
    TZhPHoKtNApJANiA
    ZWpHCGKSInmfRbov
    IDphgKMMRNtjPIvF

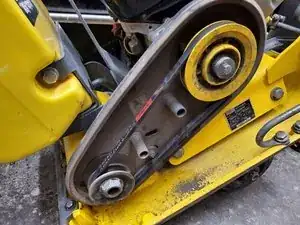

    • Loop the bottom of the belt around the small pulley

    • Pull the top of the belt around the bottom of the large pulley

    • Slowly twist the top pulley counter-clockwise while maintaining tension on the belt until the belt is completely on. This will require a bit of force

    • Be careful not to get your fingers caught between the belt and pulley as you rotate the new belt on

  6. O1giO6EXLo2ZxlAE

    • Lightly pressure wash or otherwise clean the inside of the belt guard and belt guard cover. This will reduce wear and damage on the new belt

  7. o12eGXkop3jfVLks
    o12eGXkop3jfVLks
    1YdnEeq4WkSNvPaW

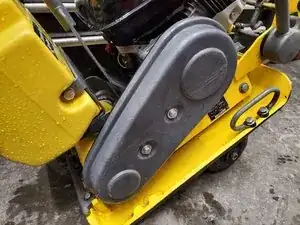

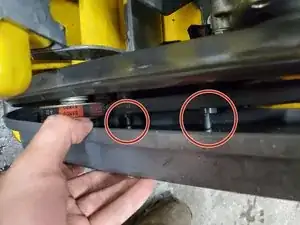

    • Line up the cover of the belt guard and place each bolt in its respective hole

    • Firmly press the belt guard cover into the rubber molding of the belt guard case to ensure proper sealing

    • Tighten the bolts firmly with a 1/2 in socket and a 3/8 in drive ratchet

Conclusion

Congrats! Your belt is now replaced.

Please give this guide a favorite and like if you found it helpful and please leave your feedback in the comments below. Thank you and have a great rest of your day.
