Wacker Concrete Vibrator M1500120 REV 100 2016 Switch Replacement

Written By: Carsten Frauenheim
  • Comments: 0
Wacker Concrete Vibrator M1500120 REV 100 2016 Switch Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 30 minutes

Introduction

Use this guide to remove or replace the switch on a Wacker M1500-120 REV 100 (2016) Concrete Vibrator.

  1. 1PAyR1Tw5BoFF6MR
    1PAyR1Tw5BoFF6MR
    w1HvIV2wsy6GNvQX
    1wKMyiprThZLyRBG

    • Before starting, ensure the device is unplugged from power.

    • Pull up on the quick-disconnect handle to release the lock on the flex shaft.

    • Remove the flex shaft.

  2. qSpywVUUNAUaHqAy

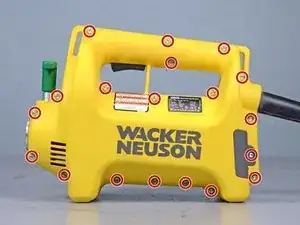

    • Use a T20 Torx screwdriver to remove the nineteen screws securing the two halves of the device housing.

  3. gnp4AAQ6M6xCZ6fT
    gnp4AAQ6M6xCZ6fT
    EWESWUfPawLLXOsf

    • Lay the device down onto its right side, screw holes facing up.

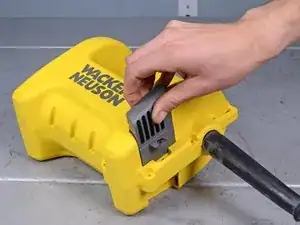

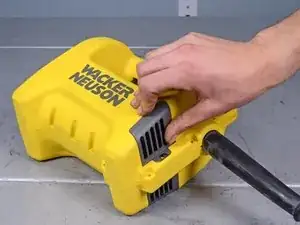

    • Remove the rear dust filter.

  4. nFGokcSQHdLYFJdY
    nFGokcSQHdLYFJdY
    KpY4YPBJVIDB2WXr
    qcReFcYSG2UTLZGU

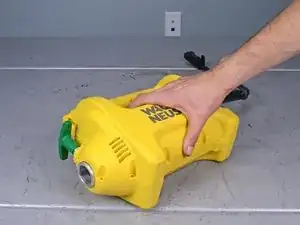

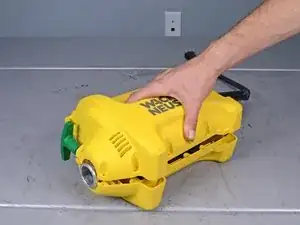

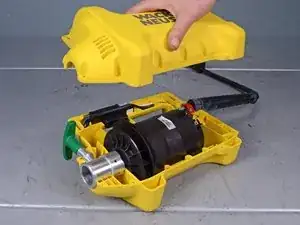

    • Lift to remove the left half of the device housing.

    • If the housings feel stuck together, use a flathead screwdriver to create a gap between the halves.

  5. 1PqDTouygO5Heh31
    1PqDTouygO5Heh31
    yBBZaa4My2V5KO6N

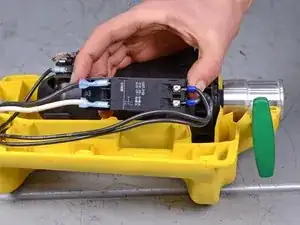

    • Lift the switch out of its recess in the case housing.

  6. VkFibewTllEnTI5Z
    VkFibewTllEnTI5Z
    eALdnoMpS4fRimIB
    sgX6jh5EMAdSXV53

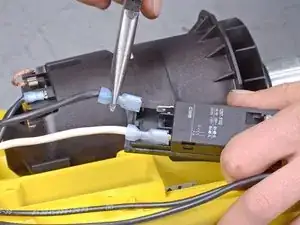

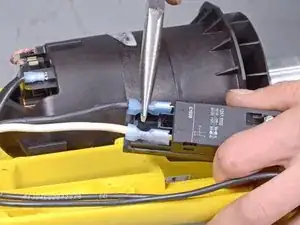

    • Use a pair of needle nose pliers to disconnect the black and white power wires from their terminals on the switch.

  7. wgHHTNYrTPhqdD32

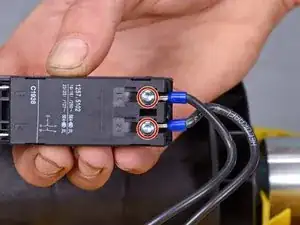

    • Use a T10 Torx screwdriver to loosen the two terminal screws securing the wires to the switch.

  8. fUEQwnXerFu4CDbT
    fUEQwnXerFu4CDbT
    DOwLwWSnGpW4ottL
    uQ3diWZ4nCATFsVH

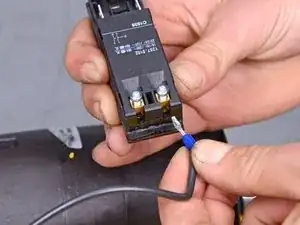

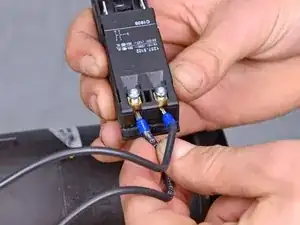

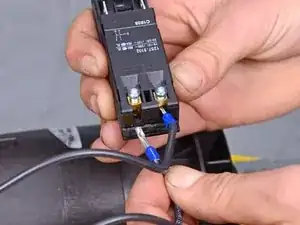

    • Pull to remove both black wires from their terminals on the switch.

    • During reassembly, install the black wire with text into the 1 terminal, and the black wire without text into the 2 terminal.

  9. kkOboEqLcoyMTrl3

    • Only the switch remains.

Conclusion

To reassemble your device, follow these instructions in reverse order.
