Wireless Card Replacement

Written By: Shahzeb

Difficulty

Moderate

Steps

Time Required

15 minutes

Introduction

In this guide, you are going to remove and replace your malfunctioning Wi-Fi card.

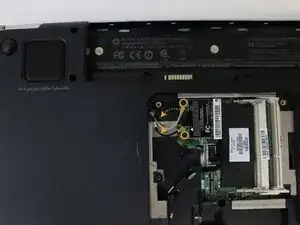

Remove the five Philips #1 screws on the panel located underneath the laptop battery.

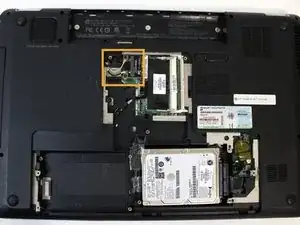

Lift up the panel.

Other guides have screw measurements to distingush them, josh has mentioned screw measurements. you may want to add lengths for all screws.

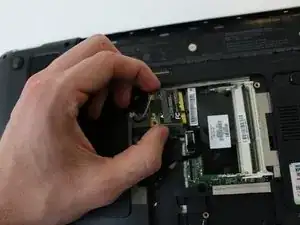

Use a spudger to lift the two antenna connectors from the wireless card.
Using a Philips #1 Screwdriver, remove the two screws holding the card in place.

Again, screw measurements

Conclusion

To reassemble your device, follow these instructions in reverse order.
