Wolf Gourmet WGTR102S Electrical Connection Replacement

Written By: Ryan Funchess
  • Comments: 4
Wolf Gourmet WGTR102S Electrical Connection Replacement

Difficulty

Moderate

Steps

11

Time Required

15 - 20 minutes

Introduction

If no electricity flows through the toaster when plugged in, try replacing the electrical connection with this guide.

  1. WjxUUa2puHV2SkLu

    • Using a wedge, pry off the rubber pieces on the bottom of each foot of the toaster.

  2. TVvter1lgkcGRkST

    • Remove the eight 8mm screws on each toaster foot using a Tri-point Y1 screwdriver.

  3. mrTcFbxsea1OdZD4

    • Remove the crumb collector located on the bottom of the toaster.

  4. qgSBOXNkgwPiJakp

    • Remove the three 8mm screws using the Tri-point Y1 screwdriver.

  5. 24LJFpjpfkVgyRCp

    • Remove the two 8mm screws on the bottom of the slide lever using a Tri-point Y1 screwdriver.

    • Once the screws are removed, detach the black plastic cover on the bottom of the slide lever.

  6. nP4BKrrMjKFEhHmS

    • Remove the final 8mm screw in the slide lever.

    • The lever can now pull away from the entire unit.

  7. 62wUiSShXki1KVMn

    • Remove toaster's outer shell by lifting straight up.

    • Slowly remove the outer shell. Disconnect ground wire before fully separating the shell and inner components.

  8. RHF4pxl3IPFxXWvd
    RHF4pxl3IPFxXWvd
    HAXUryJKeMAYK2p1

    • Disconnect the wire cluster that connects the lights and circuit board by pulling apart the two plastic connectors.

    • Remove the outer shell from the device.

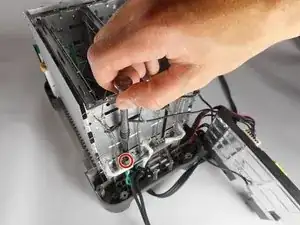

  9. D2qSk3CNLQIHMMuZ

    • Unscrew the ground wire using a Tri-point Y1 screwdriver. It is secured with an 8mm screw.

    This skips one step. Loosening the circuit panel and pulling aside after removing the two screws at bottom

    Valentino -

  10. jOWftqQAbCnLVVDL

    • Use pliers to pull apart the three electrical connectors pictured in the graphic.

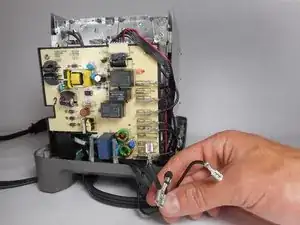

  11. qEW3IPsHrLuFvfg3

    • Replace the electrical connectors.

    Would love to know how to remove the cord from the unit. Easy up until this point, then it is near impossible to get the cord out to replace. Also finding an equivalent cord is difficult as WOLF will not release part information.

    Valentino -

    Where can we get new electric connectors? Will Wolf provide these if unit is only 7-months old?

    Kurt Lindahl -

Conclusion

To reassemble your device, follow these instructions in reverse order.
