Wolf Gourmet WGTR102S Slide Assist Plunger Replacement

Written By: Ryan Funchess
  • Comments: 6
Wolf Gourmet WGTR102S Slide Assist Plunger Replacement

Difficulty

Moderate

Steps

11

Time Required

10 - 15 minutes

Introduction

If your toast rack does not slide up all the way, or your toast pops up too fast, try replacing the slide assist plunger with this guide.

  1. WjxUUa2puHV2SkLu

    • Using a wedge, pry off the rubber pieces on the bottom of each foot of the toaster.

  2. TVvter1lgkcGRkST

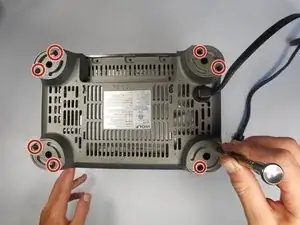

    • Remove the eight 8mm screws on each toaster foot using a Tri-point Y1 screwdriver.

  3. mrTcFbxsea1OdZD4

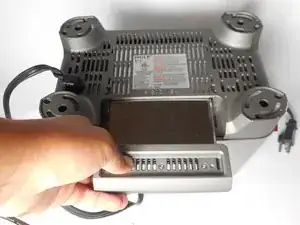

    • Remove the crumb collector located on the bottom of the toaster.

  4. qgSBOXNkgwPiJakp

    • Remove the three 8mm screws using the Tri-point Y1 screwdriver.

  5. 24LJFpjpfkVgyRCp

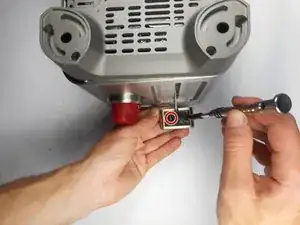

    • Remove the two 8mm screws on the bottom of the slide lever using a Tri-point Y1 screwdriver.

    • Once the screws are removed, detach the black plastic cover on the bottom of the slide lever.

  6. nP4BKrrMjKFEhHmS

    • Remove the final 8mm screw in the slide lever.

    • The lever can now pull away from the entire unit.

  7. 62wUiSShXki1KVMn

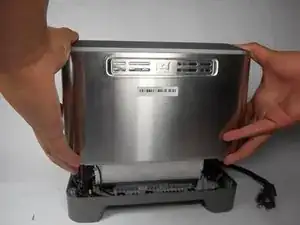

    • Remove toaster's outer shell by lifting straight up.

    • Slowly remove the outer shell. Disconnect ground wire before fully separating the shell and inner components.

  8. RHF4pxl3IPFxXWvd
    RHF4pxl3IPFxXWvd
    HAXUryJKeMAYK2p1

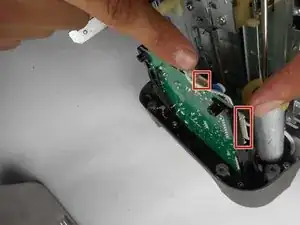

    • Disconnect the wire cluster that connects the lights and circuit board by pulling apart the two plastic connectors.

    • Remove the outer shell from the device.

  9. miuxhWYBOUfujWNd

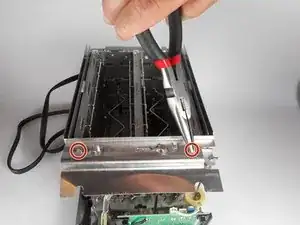

    • Remove the top panel by bending the tabs on each side straight up.

  10. jBEqYNEqWpFe1LtR

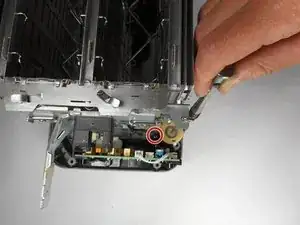

    • Remove the two 8mm screws on the bottom of the plunger using a Tri-point Y1 screwdriver.

  11. wsMIKXAjhdyuaSPV
    wsMIKXAjhdyuaSPV
    CLuIBkaXRLpGvbWo

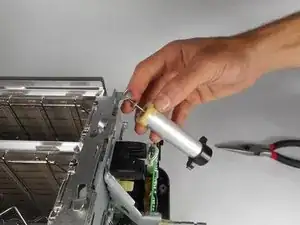

    • Remove the plunger from the device.

    I need two plungers

    Mattress1* -

    I need two plunger

    Mattress1* -

Conclusion

To reassemble your device, follow these instructions in reverse order.
