X-street Lamborghini Murcielago LP670-4 SV Wheel Replacement

Written By: Liam Martinez
  • Comments: 1
X-street Lamborghini Murcielago LP670-4 SV Wheel Replacement

Difficulty

Moderate

Steps

14

Time Required

30 minutes

Introduction

The wheels connect the car to the ground. Any fault in these could hinder the car performance and replacing them would serve to improve the car.

  1. 1olWnWLQxDOTjxIX

    • Unscrew the two 2.5mm Phillips #00 screws from the middle of the car.

    • Unclip the two clips to remove the battery cover.

  2. anojGdmPh3wKSNFw

    • Unplug the battery by pushing on the clip.

  3. tMm2y1YfSUowSNNI

    • Unscrew the two 2.5mm Phillips #00 screws from each side

  4. ZijBsYMO2qRYWdiH

    • Remove the side skirt covers on each side of the car.

  5. UXZPeupxFFIQDXHY
    UXZPeupxFFIQDXHY
    ORfvVKWDypaUORnP

    • Lift up and remove the two side skirts.

  6. JqUHeZBOZQW652o3

    • Unscrew the two 2.5mm Phillips #00 screws from the front skirt of the car.

  7. g6p1ActuMsFJ2Uwc

    • Lift the front part of the underbody and pull it out from the main underbody.

  8. cSOGkPeCr54vXMDV
    cSOGkPeCr54vXMDV
    BYpmSMJuUbEJWXyh

    • Unscrew the remaining seven 9mm Phillips #00 screws from the underbody of the car.

    • The second image shows a closer view of the rear three screws

  9. sGODTSaSIABmQeTY
    sGODTSaSIABmQeTY
    JIAjMSTJngOnaXYo

    • Lift the main underbody from the shell of the car.

    • Lift up the body to expose the wiring and hardware underneath.

  10. bGFVLdp2OrbmbQPp

    • Remove the reflective sticker from the top of the body.

  11. DfAr4I6LNDuH2wwV

    • Unplug the wire connector.

  12. OpYZDQK3y2sWgr1W
    OpYZDQK3y2sWgr1W
    OXvTaPv4W5LyEq1k
    CIuyDTXVUAJIAhXA

    • Unscrew the three 2.5mm Phillips #00 screws from the white steering column.

    • After removing the three screws, the steering column will pop out of position because of the springs underneath. To reassemble, put the springs back together as shown in picture #3.

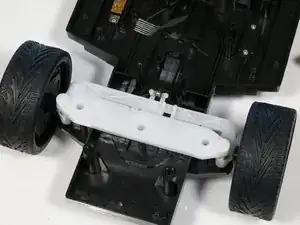

  13. sBfTMWSlAx3CLkmF

    • Gently pull the steering column up and remove it along with the wheels

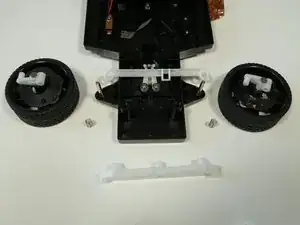

  14. vPdnYIZu5OpLEYt1

    • Pull the wheels away from the steering column.

    • Replace the wheel assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
