Xbox One Stereo Headset Microphone Replacement

Written By: Trevor Steele
  • Comments: 9
Xbox One Stereo Headset Microphone Replacement

Difficulty

Difficult

Steps

6

Time Required

15 - 30 minutes

Introduction

This guide has only a few simple steps to get to the microphone. However, soldering is required to fully detach the microphone from the headset and install a replacement. Please refer to the soldering technique guide for instructions on soldering and desoldering.

  1. pn21OBXLIdAbrSmv
    pn21OBXLIdAbrSmv
    ts5ho5iC5fVXsNJq
    OAPY6H2j4ffAZDmW

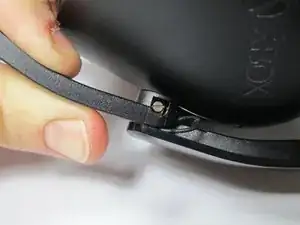

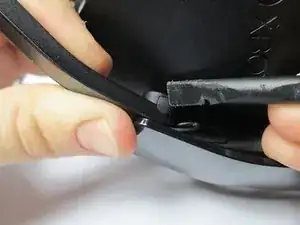

    • Use the flat end of a spudger to pry out the rubber stopper at the base of the boom.

  2. RTuXKWfB2scSDKXw

    • Remove the single 6 mm flathead #2.0 screw exposed after removing the rubber stopper.

  3. YSawKqKUuDC5BKxa

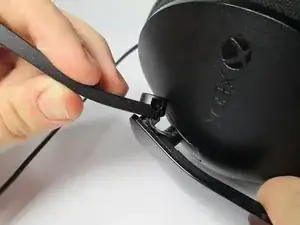

    • Lift the joint of the boom up and over its pivot point to separate the microphone from the headset.

  4. vKiZX1trZcYm6Xhf
    vKiZX1trZcYm6Xhf
    cDnkuslZqTQeFxqN
    WLD5u6ZOuofjANXi

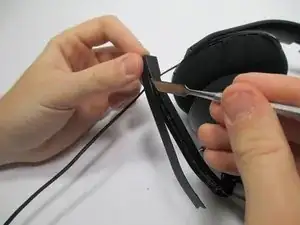

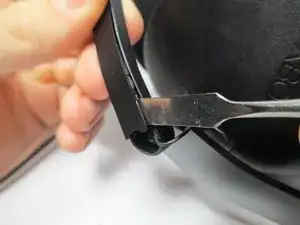

    • Using the flat end of the metal spudger, pry the back plate off the boom.

    • The back plate is glued to the boom and must be removed gently.

    • When re-installing, apply a few drops of super glue to hold it in place.

  5. YpehGNKGOyeB4sD3

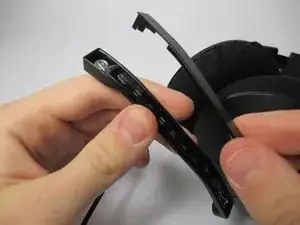

    • Pull the back plate off the boom.

  6. 4M6QJxg5pOeglunW

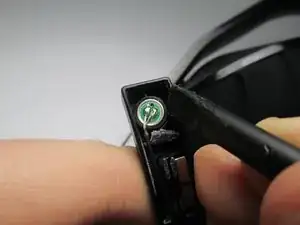

    • Using the flat end of the plastic spudger, gently pry the microphone out of its casing.

    • Desolder the two wires from the back of the microphone. For instructions on how to solder and desolder, please see the soldering technique guide.

    • The white wire connects to the positive node, which is indicated with a "+" on the microphone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
