Xiaomi Mi 11T Charging Port Replacement

Written By: I like to fix things
  • Comments: 0
Xiaomi Mi 11T Charging Port Replacement

Difficulty

Easy

Steps

6

Time Required

30 minutes

Introduction

This guide will show you how to replace the Xiaomi 11T Charging Port.

  1. 6A3E4Ea5Gc2ZLMdt

    • Remove the SIM Card Tray

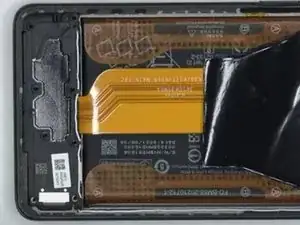

  2. OWgIVxl4SnkBiMXX

    • Remove the back glass, but be gentle! It can break

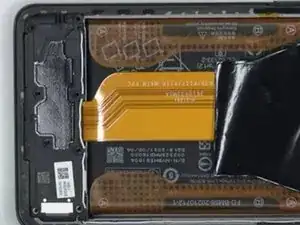

  3. WDIkV4xjnv6k4IGd

    • Remove The 7 screws

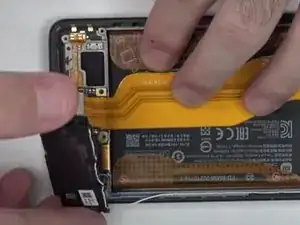

  4. US5MbgtSDwvicpOH

    • Remove the bottom speaker

  5. IJQ2TTYviONEIZxW

    • Unplug the ribbon cables and the antenna wire, then unroute the antenna wire

    • Now lift up the port and replace it with a new one.

Conclusion

To reassemble your device, follow these instructions in reverse order. Thanks to PBKreviews on Youtube for the pictures.
