Xiaomi Mi 9 Loudspeaker Unit Replacement

Written By: Dominik Schnabelrauch

Comments: 8

Xiaomi Mi 9 Loudspeaker Unit Replacement

Difficulty

Moderate

Steps

Time Required

35 - 45 minutes

Introduction

Use this guide to remove or replace a malfunctioning or defective loudspeaker unit in the Xiaomi Mi 9.

You’ll need replacement adhesive to reattach components when reassembling the device.

Tools

Step 1

Before you begin, switch off your phone.
Apply a heated iOpener to the rear glass to loosen the adhesive beneath the edges. Apply the iOpener for at least two minutes.

Step 2

Secure a suction handle to the lower edge of the rear glass, as close to the edge as possible.
If the phone's rear glass is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.
Lift the rear glass with the suction handle to create a gap between the glass and the frame.
Insert an opening pick into the gap.
If you have trouble, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.
Slide the opening pick to the bottom right corner of the phone.

Step 3

Insert a second opening pick and slide it to the bottom left corner to cut the adhesive.
Leave the opening picks in place to prevent the adhesive from resealing.

Step 4

Insert a third opening pick at the bottom left corner.
Start to slide the opening pick from the bottom left corner along the side of the Xiaomi Mi 9 to cut the adhesive.
Be aware of the rear cameras and only insert the tip of the opening pick. As the adhesive cools down it gets harder to cut. If necessary use your iOpener to reheat it.
Leave the opening pick in the top left corner to prevent the adhesive from resealing.

Step 5

Insert a fourth opening pick under the top left corner of the rear glass.
Slide the opening pick along the top to cut the adhesive.
Leave the opening pick in the top right corner to prevent the adhesive from resealing.

Be very careful at this point not to raise the cover too much, at the slightest bending the glass shatters. It just happened to me :(

enrica_spiga -

Step 6

Insert a fifth opening pick at the top right corner of the phone.
Slide the opening pick along the right edge to cut the remaining adhesive.

Step 7

Carefully lift the rear glass and remove it.
Before installing new adhesive and reassembly, remove any remaining adhesive from the phone, and clean the glued areas with isopropyl alcohol and a lint-free cloth.

Il y a un peu d'adhésif autour de l'appareil photo, c'est pour cela que ça peu forcer un tout petit peu.

Charles -

Step 8

Remove the ten Phillips #00 screws (3 mm length) that secure the motherboard cover.
There might be tamper proof sticker on some of the screws.

Note, the Explorer/Transparent edition does not use phillips #00 screws.

Jason Baginski - 20/08/20

It uses 0.8mm star screws(P2 Pentalobe in the iFixIt store)

Jason Baginski - 27/08/20

Thanks for mentioning Jason!

Dominik Schnabelrauch - 28/08/20

Step 9

Insert an opening pick at the top right corner of the motherboard cover.
Twist the opening pick sideways to pry up and slightly lift the motherboard cover.

Step 10

Carefully remove the motherboard cover including the charging coil / NFC antenna.

Step 11

Use a spudger to pry up and disconnect the battery flex cable.

Step 12

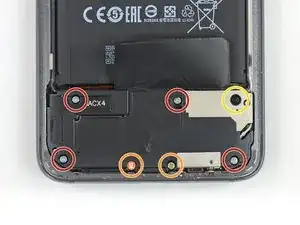

Remove the seven Phillips #00 screws securing the loudspeaker unit:
Four silver 3.2 mm long screws
Two yellowish 3.8 mm long screws
One black 2.8 mm long screw
Some screws may be hidden beneath tamper proof stickers.

I found that there was no need to remove the loudspeaker assembly at all. The battery adhesive was easy to pull out (by rolling it up on a screwdriver) without needing to remove the loudspeaker.

Jez S -

I can confirm this. Worked like a charm without taking the loudspeaker assembly out.

Alexander Niehoff -

Ich stellte fest, dass es überhaupt nicht nötig war, die Lautsprecherbaugruppe zu entfernen. Der Batteriekleber ließ sich leicht herausziehen (durch Aufrollen mit einem Schraubenzieher), ohne dass der Lautsprecher entfernt werden musste.
Gegenteilig sogar! Das Antennenkabel löste sich und hat dann außerordentlich viel Zeit gekostet den Stecker zu reparieren!!

Harald Sanders -

Step 13

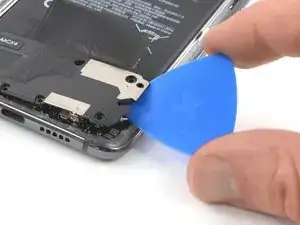

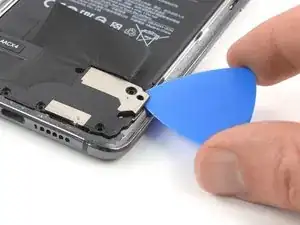

Slide an opening pick under the right side of the loudspeaker unit.
Twist the opening pick sideways to pry up the loudspeaker unit until you can get a good grip.
There is still an antenna cable connected to the back of the unit.

Step 14

There is still an antenna cable connected to the back of the unit.

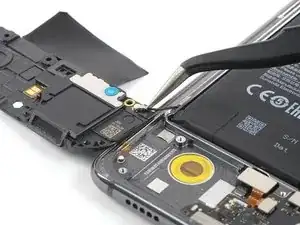

Carefully lift the loudspeaker unit and hinge it open towards the left side.

Step 15

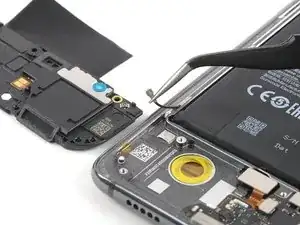

Use a pair of tweezers to pry off and disconnect the antenna cable from the loudspeaker unit.
Remove the loudspeaker unit.
Before reassembly check your old loudspeaker for components that might need to be transferred to the replacement part such as the antenna flex cable with its coax connector.

Conclusion

If possible, turn on your phone and test your repair before installing new adhesive and resealing the phone.

To reassemble your device, follow these instructions in reverse order.
