Xiaomi Mi Pad Rear Camera Replacement

Written By: Kiefer Sivitz
  • Comments: 0
Xiaomi Mi Pad Rear Camera Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 10 minutes

Introduction

Use this guide to remove the rear-facing camera from your Xiaomi Mi Pad.

  1. fcTG44DFS45YYli6

    • Remove the micro SD card slot from the left side of the device using either the metal pin included with the device or a SIM card eject tool.

  2. W4FvDyr2E1FPLdUT
    W4FvDyr2E1FPLdUT
    N2HmxwcC1OXRuvxJ

    • Use a plastic opening tool and/or opening pick to gently pry the back panel away from the device. Work your way around the device, slowly increasing the gap.

    • The back panel has small clips and light adhesive that easily releases from the device.

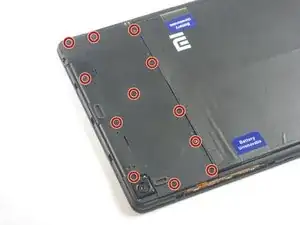

  3. OHtRoXRTB5lEHsoW
    OHtRoXRTB5lEHsoW

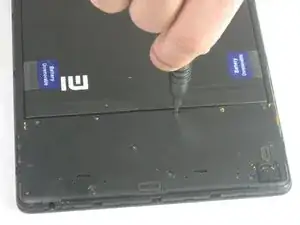

    ocUWgOHmjYwGPRoQ

    • Remove the twelve 3.0 mm Phillips #000 screws on the upper cover of the device.

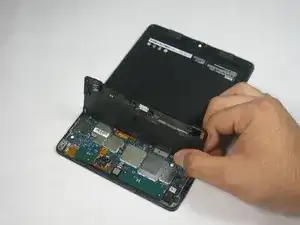

  4. KbrdOYBZWiLo36iM

    • Remove the upper cover from the device.

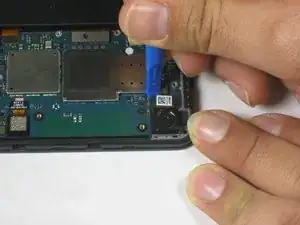

  5. YVlK6PmyqJrCsVFO

    • Use a plastic opening tool to disconnect the rear-facing camera from the motherboard.

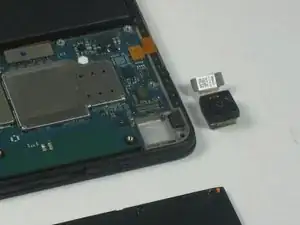

  6. GGWrCTcuCCZAVGBC

    • Carefully remove the rear camera from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
