Xiaomi ROBOROCK S50200 Left wheel repair

Written By: hainzy
  • Comments: 0
Xiaomi ROBOROCK S50200 Left wheel repair

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

In this guide I will show you how to replace the left wheel.


This will help you if the vacuum cleaner only runs in circles or reports error 7 or error 8. Please note, however, that these errors can also have other causes.

  1. Tqwgh1STS11nBhEc
    Tqwgh1STS11nBhEc
    HaRNvcmjjhFGppEA

    • Turn off the device by pressing and holding the power button.

  2. gYIWOlPGDjxAjCS1

    • Open the cover upwards.

    • Lift the dustbin upward to remove it.

  3. MRidMaLObtQsV1vk
    MRidMaLObtQsV1vk
    VNpdBI5YjcmLLpGt

    • Remove the main brush holder by pressing both locks inward and lifting it up.

    • Remove the main brush.

  4. YSMKxHeWSN2ZObxW
    YSMKxHeWSN2ZObxW
    4RfGMAFiSUNJ6jGp
    DNlrvxMoTITjFfMO

    • Remove the screw holding the side brush.

    • You don't need to completely unscrew the screw; simply loosen it and remove it with the brush.

    • Remove the side brush along with the screw by lifting it upward.

  5. xNh4NgMGBuYr1tKi
    xNh4NgMGBuYr1tKi
    O13UEfCSNei1PMaZ
    FDoYcTC6LHCVsfHr

    • Lift the front wheel with the screwdriver.

    • Completely pull the front wheel upward to remove it.

  6. bjFtwN6F4laHDTKl
    bjFtwN6F4laHDTKl
    QbS6EmIpqMSHHc5G
    SfvYONPYu1QOELlL

    • Remove the seven screws holding the bottom panel.

    • Lift the bottom cover up.

  7. rgX41Dv4rKWProco
    rgX41Dv4rKWProco
    MRxSCxtmIs61cGFK
    IL1pNYf3aS4SZqD4

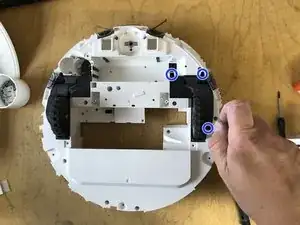

    • remove the three screws from the drive unit

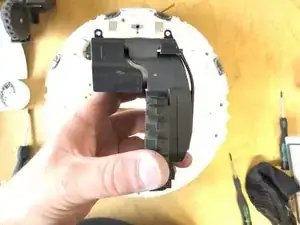

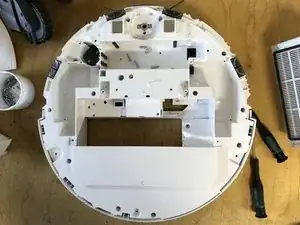

    • Remove wheel upwards (connected to a circuit board via plug connection)

Conclusion

Work through the steps in reverse order to reassemble your device.
