Introduction
This guide will demonstrate the proper technique for removing and replacing the main brush for the vacuum.
Parts
-
-
Remove the dust bin by gently pressing the silver button on top of the vacuum until the bin releases.
-
-
-
Grip the bottom of the dust bin. Push up on the tabs as indicated by the yellow arrows.
-
Empty contents of bin into waste receptacle and rinse with water as needed.
-
-
-
Flip over the device to access the brush cover.
-

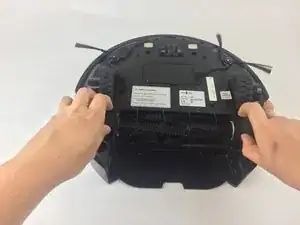

To remove the brush cover, push together the two snap releases on the right and left sides of the cover until it releases.
-
-
-

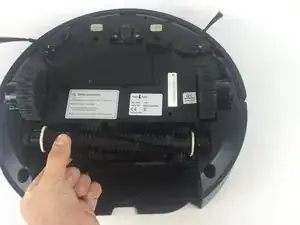

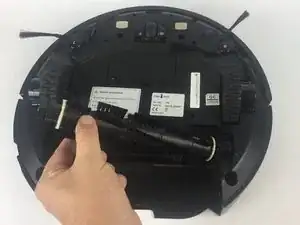

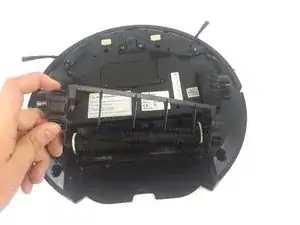

Grip the left side of the brush with the square end-piece and pull up until the brush pops out.
-
-
-
When preparing a new brush, it is very important to make sure that the new one is equipped with the proper end-pieces.
-

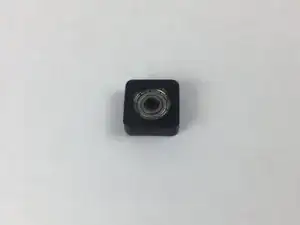

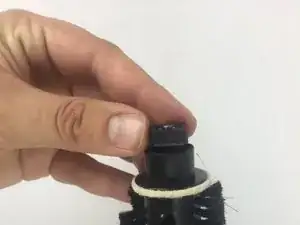

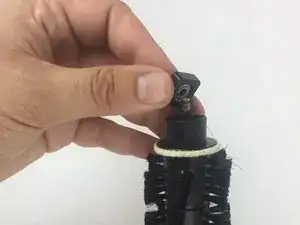

Take the round metal piece and slide it into the square rubber coating. Then, stick it on the end with the metal peg.
-
To reassemble your device, follow these instructions in reverse order.
