ZTE Blade E Motherboard Replacement

Written By: Lilia Johnson
  • Comments: 3
ZTE Blade E Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

  1. 3aRNLRCUx3PHmdDn

    • Using a spudger, remove the back panel of the phone.

  2. CgcVxRw3ACIkXIyj
    CgcVxRw3ACIkXIyj
    C44Wfc3FpW5jZWck

    • Remove the battery and SD card from the phone.

  3. b5RBnQrlON3DKAyH

    • Remove the five 4mm Philips #00 screws, circled in red, holding the the back down.

  4. VGnoU2UITWZLiiyH

    • Remove the back piece, exposing the motherboard.

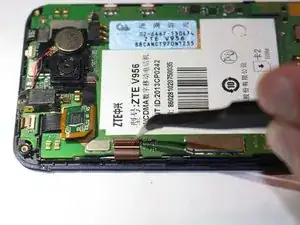

  5. xxrmyDFokBh6CHUf
    xxrmyDFokBh6CHUf
    HIjVvdOfddkTFLOf
    bUsfI1WcdFxquWuQ

    • Flip up the three small tan clips holding the ribbons in place.

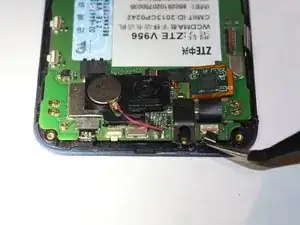

  6. eN1bwfTGWgoJvPrZ

    • Gently slide each of the three ribbons out of the motherboard.

  7. FekwSy2oateADHtl

    • Slide the motherboard off of the ribbons detaching it from the front of the phone.

    Excelente gráfica,gran aporte

    Juan -

    I have a ZTE Blade C370 in the workshop to change the LCD, I would like to be able to contribute some material. There is a tutorial where I can see what I need to be able to contribute. For example, the quality of the images and their descriptions.

    Alvaro Gomes -

Conclusion

To reassemble your device, follow these instructions in reverse order.
