ZTE Grand X Max Plus Camera Replacement

Written By: Jordano Baer
  • Comments: 2
ZTE Grand X Max Plus Camera Replacement

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

This guide contains the steps to remove the rear camera from the ZTE Grand X Max Plus.

If your camera is scratched or not working, you can follow these steps to replace it.

  1. YTeBrvESN6eRoPJp

    • Make sure you turn off your phone before starting.

    • Heat the phone using a heating pad, heat gun, or hair dryer to loosen the glue. You just need to heat the back of the phone.

    • You can also use a hair dryer or a heating gun for this step.

    What if you have no heating element or source

    mlp100686 -

  2. rfHXFmg6e2YWFdeB
    rfHXFmg6e2YWFdeB
    oOvGIovLjQ32RoRM

    • After the phone is heated, use the blue plastic opening tool on both sides of the phone.

    • Don't apply too much pressure because the cover can crack easily.

    • To avoid that your cover cracks, you can add tape to back cover.

    • You can use a suction cup to help remove the battery.

  3. sbxxy5nbr6sMlxgA
    sbxxy5nbr6sMlxgA
    dMCCe46WPtDjDVUD

    • Carefully remove the cover from the phone.

    Pics are a little dark. See if you can play with the white balance to correct this.

    Patty Remmell -

  4. a3uUcLWvYZIW6yRX
    a3uUcLWvYZIW6yRX
    SZxM4mOMxaGGYSb4

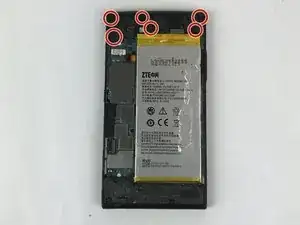

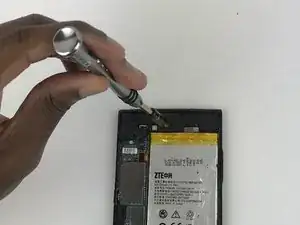

    • Remove the screws from the upper part of the phone using a screwdriver with a JIS #000 head. There are (6) six screws that should be removed.

  5. WexYBWoXIZr2ALcn
    WexYBWoXIZr2ALcn
    TQaCfIZgaeHfXr3b
    1WcmgXmGvOmD6y6K

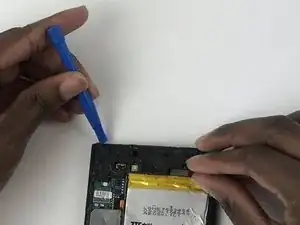

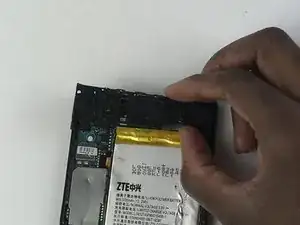

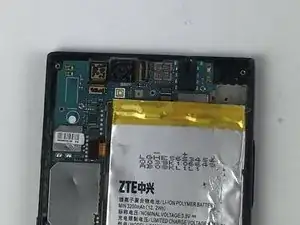

    • Use a plastic opening tool to remove the plastic piece that is protecting the motherboard.

  6. 3wCdSXWeOESXNPQ1

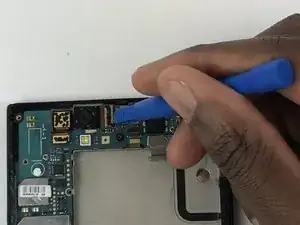

    • With a plastic opening tool, unclip the camera from the motherboard.

  7. SBMpwjxUDpYROCHZ
    SBMpwjxUDpYROCHZ
    wXKkLBEugANgtZie
    1BAlYnZDUiNAEZAL

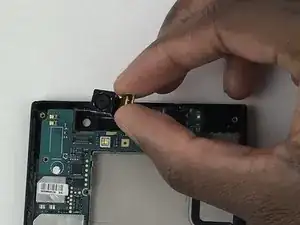

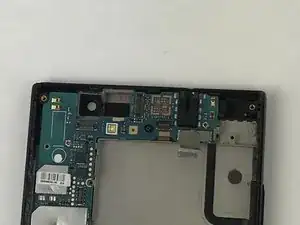

    • After the camera is unclipped, remove it from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
