ZTE Quest n817 Motherboard Replacement

Written By: Eric Loureiro
  • Comments: 0
ZTE Quest n817 Motherboard Replacement

Difficulty

Moderate

Steps

8

Time Required

8 minutes

Introduction

If you do need to replace your ZTE Quest's motherboard, this guide will take you through the process of opening your device and fully removing the motherboard.

  1. KMxZYAPOXcjxiC1n
    KMxZYAPOXcjxiC1n
    ZG4EZO2IiwvOJqgw
    JIC3n2c4OtZ1NUOL

    • Ensure that the phone is turned off before starting.

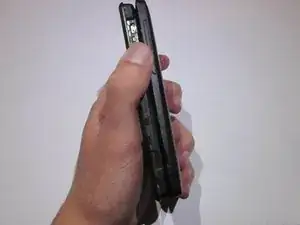

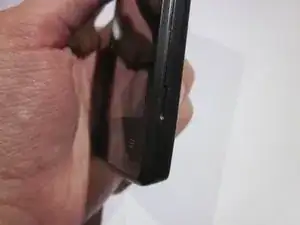

    • Orient the device so that the inset on the right side of the device is facing you.

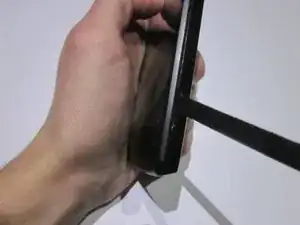

    • Insert the spudger into the inset and carefully remove the back panel.

  2. JiYp4OVJ6rCXP3tY
    JiYp4OVJ6rCXP3tY
    jXX6k6jxNaOTg3Yg

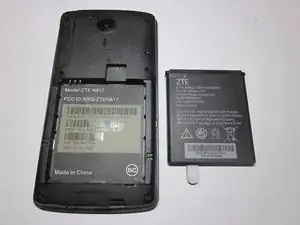

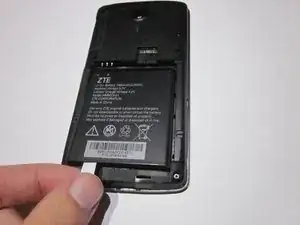

    • Use the ribbon to remove the exposed battery.

  3. eUcYmdtgncEyYHCZ

    • Use the JIS #000 screwdriver to remove the six 3.0mm screws placed in the back of the ZTE Quest.

  4. TYFuGWQuddEVNDNt

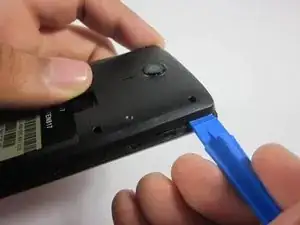

    • Carefully pry open the back panel with the plastic opening tool.

  5. PZfhw4wQUPlB1FkV

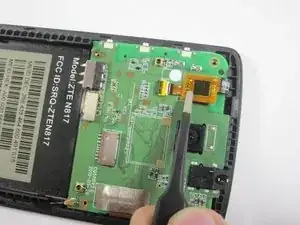

    • Use a pair of tweezers to gently disconnect the ribbon cable connector from its socket.

  6. wIaZUZ3Ng2N2ewKs

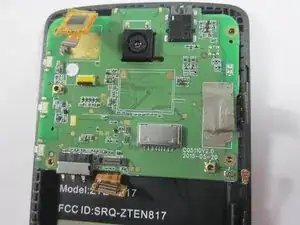

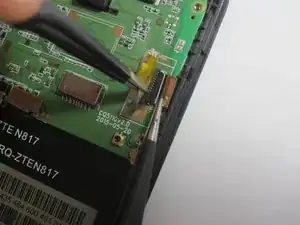

    • Pull back the tape encasing the brown ribbon cable connector.

    • Remove the ribbon cable from its socket.

  7. AFRdSOEvJSBqRySZ

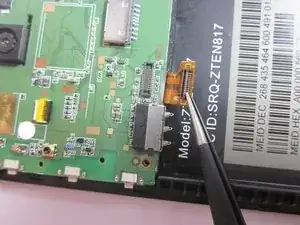

    • Unplug the flat-top connector by using a pair of tweezers to pry up each side before removing the connector from its socket.

  8. HPrQJGTe2xPVPNBU
    HPrQJGTe2xPVPNBU
    4nTQB1TlX3sjQT6w

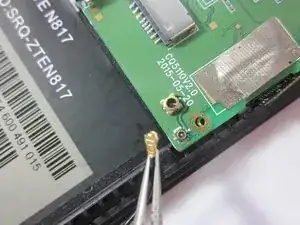

    • Disconnect the coaxial connector in the bottom right corner of the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
