Introduction
Directions for opening bObi and removing the touch sensor strip under the bumper pads. For help closing bObi, see Closing bObi's Cover Post-Repair
Tools
-

                  -
            Remove bObi’s front wheel to access one of the screws holding bObi together.
-
            Uninstall the larger screw that sits deeper in the wheel compartment.

-

-

                  -
            Remove bObi's dustbin.
-
            Uninstall the 2 screws close to the bin and 2 smaller screws above her main brushes.

-

-

                  -
            Lift the brush holder. To detach completely, unplug it from bObi.
-
            Remove the two screws on the dustbin contact point holder inside bObi.
-
            There are 4 screws beneath the main brushes. Uninstall these, and open bObi up to expose her main circuit board.

-

-

                  -
            Detach the two circuit plugs connecting bObi's cover to the main board and the cover will be completely removed.

-

-

                  -

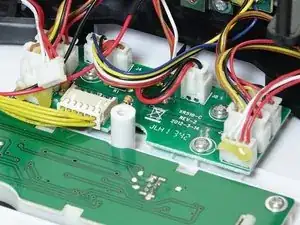

            The sensor strips underneath bObi's 80 exterior touch sensors are attached to the cover circuit board by two wires, one red one white.
-

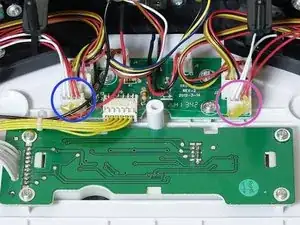

            The circuit plug on the left communicates with bObi's right half of touch sensors.
-
            The plug on the right controls bObi's left half of touch sensors.
-
            Remove the appropriate touch sensor's circuit plug from the cover's circuit board.

-

-

                  -

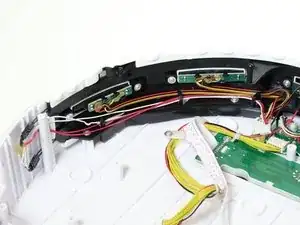

            Feed both wires towards the end of the bumper.
-

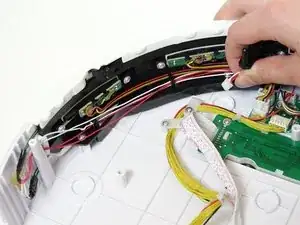

            Continue along the inside edge of the bumper until the wires are unhooked from each holder.
-

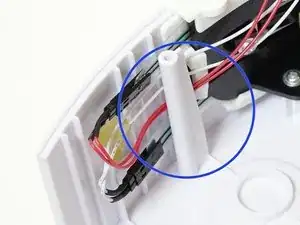

            Then, pull both out from the post at the bumper's edge.
-

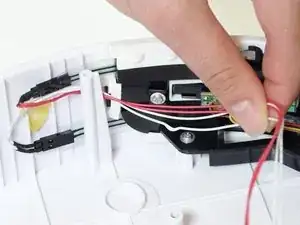

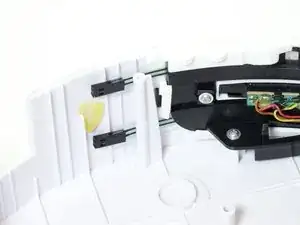

            Pull each wire to the side to disconnect it from the touch sensor adapter.

-

-

                  -

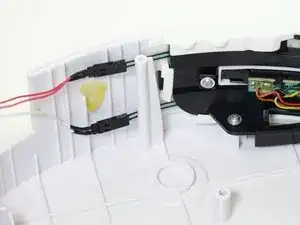

            Plug in the white wire to the bottom touch strip connector, and the red one on top.
-
            Tuck the wires behind the white post at the end of the bumper. Then, feed them back through the hooks.

-

-

                  -

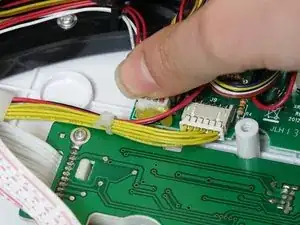

            Firmly press the circuit plug for the replacement sensor in to the open space.
-
            To put bObi back together, follow the steps in the reassembly guide: Closing bObi's Cover Post-Repair

-

For instructions on how to reassemble bObi's cover, check out the guide Closing bObi's Cover Post-Repair
