bObsweep Robotic Vacuum Battery Replacement

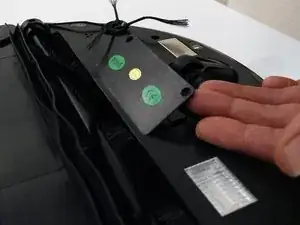

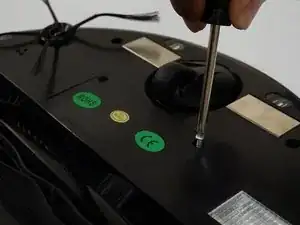

Unscrew the battery's cover plate on bObsweep's underside, above the main brush.

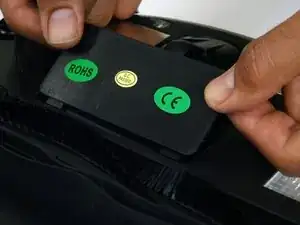

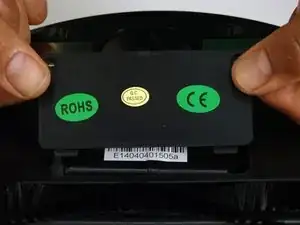

Lift the cover plate to expose the battery.

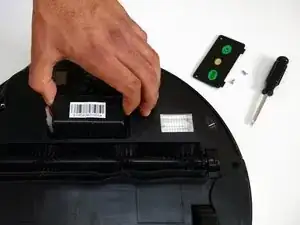

Lift the battery up and out of its compartment.

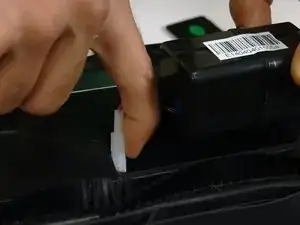

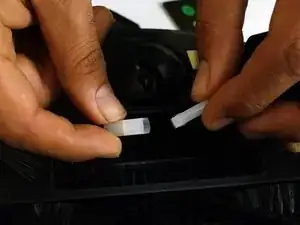

Using both hands, pinch the plastic connector where the battery's wiring attaches to bObsweep and pull apart to disconnect.

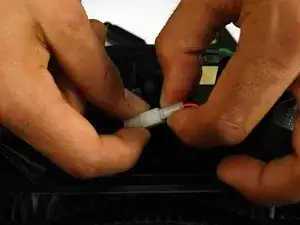

Connect the wires of the new battery. Push together tightly and it will lock in place.

Tuck the wires down inside the battery compartment on the right side.

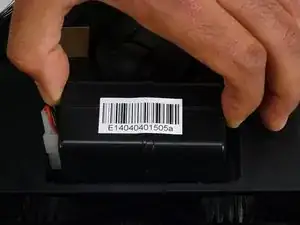

Lower the battery down into bObsweep with the barcode facing up.

Lower the cover down so it lies flat and the screw holes of the cover line up with those on bObsweep.

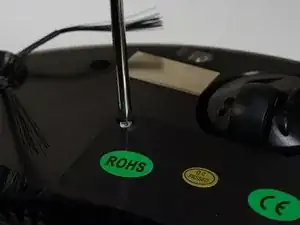

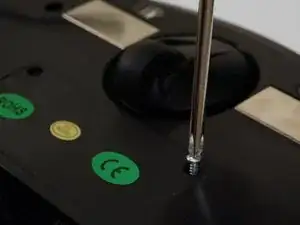

Reinstall the two screws removed in step one to secure the cover and battery in place.
