Introduction
This guide shows the steps in removing the part of Bob which holds the main brush and adjusts up and down for flooring transitions.
Tools
-

                  -
            Flip Bob over and remove the 7 screws around which hold the cover together.
-
            Remove the main brush. Unscrew the holder, and lift the brush out. Reminder: Keep this screw separate from the others so you can use it later to reinstall.

-

-

                  -
            There are two screw holes inside the brush compartment: one in the centre, one on the left end. Remove both and keep aside for reassembly.
-
            There are five more screws around bObsweep's edges. Two are installed at the top and bottom, and one on the right end of the main brush.

-

-

                  -
            Flip bOb back over so you can see the screen. Lift the cover up to reveal bObsweep’s main board.
-
            Detach the power inlet from the cover. Grip and slide it out.

-

-

                  -
            Remove three circuit plugs from the motherboard. Pinch the small white tab on the side of each circuit plug and pull straight up to release each from the motherboard.
-
            1. On the bottom left corner: a small connector with red, black and white wires.
-
            2. One thick white wire that attaches on the right side of the previous connector.
-
            3. On the top edge of bOb’s motherboard: a wide multicoloured connector.
-
            Place the cover aside and begin your repair.

-

-

                  -

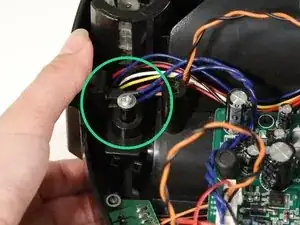

            The clutch end of the main brush, where the pin sits, is held inside Bob with one screw. It is found beside the power switch.
-

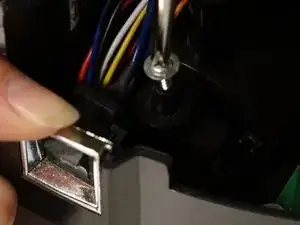

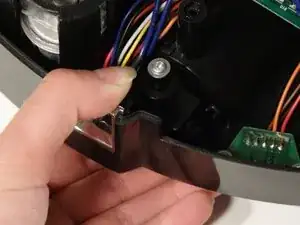

            Use one hand to push the clutch up, then uninstall the screw and keep it aside for later.

-

-

                  -
            Lift bOb up, and two pieces will fall out: the clutch and a spring on top of it.
-

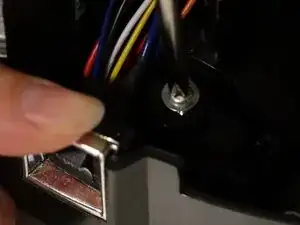

            Place your new parts underneath bOb. Hold the spring on top of the clutch piece while putting it back in its space, then reinstall the screw.

-

-

                  -

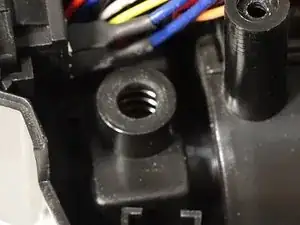

            Make sure to hold the clutch piece underneath bOb while installing the screw, so you can see the screw post protruding inside bObsweep.
-
            When you’re finished, reattach the cover and install the main brush. Follow instructions in the Closing bObsweep's cover after repair

-

To close bObsweep after this repair, follow instructions in the Closing bObsweep's cover after repair
