iLive IKBC384S Motherboard Replacement

Written By: Tracy Walts
  • Comments: 0
iLive IKBC384S Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

You are going to replace the motherboard simply by unscrewing a few screws and then removing the motherboard from the device.

  1. c4lefSEhYlDJKLqa
    c4lefSEhYlDJKLqa
    UD4BpYONGyWvl3DI

    • Make sure you remove all seven 3 mm screws before proceeding to the next step.

  2. RqtCbNZZ4wAAwQRp
    RqtCbNZZ4wAAwQRp
    xSOcHD3CEhAXb5dK

    • Use iOpener or heat gun on all sides except the front.

  3. 5OFyrIJxF3TYVEwK
    5OFyrIJxF3TYVEwK
    sGbGCawsLjwg2NZA

    • Be cautious when taking the top of the device off there may still be some adhesive stuck to device.

    • The top of the device will be very difficult to remove because of the adhesive holding it together.

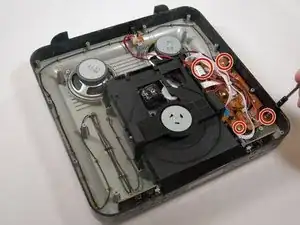

  4. 3pjKVIy3cEU6OBMR

    • After removing the top of the device, locate the screws on the motherboard. Gently unscrew all four of the 3.5mm screws on the motherboard.

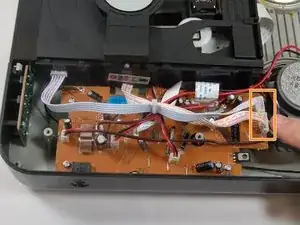

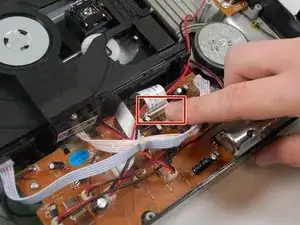

  5. WA4iwNFcQVtqCC5o
    WA4iwNFcQVtqCC5o
    RWyVKjkMmBqjdF3Q

    • Unplug the ribbon cable connected to the motherboard that stems from the disc drive.

    • Disconnect the two power connectors from the motherboard.

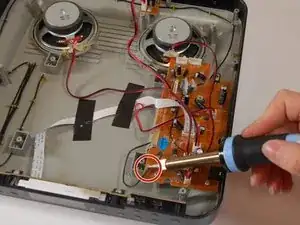

  6. uZiEqUuLGSTPSqqX

    • You will need to desolder the antenna.

    • Be sure to desolder the piece connected to the motherboard not the wire.

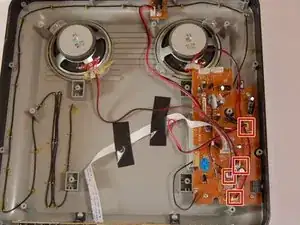

  7. VTOPLUXXQtM2iWtF

    • You will need to remove the speakers and power connector.

    • Once you have removed all of these from the motherboard, the motherboard can be removed

Conclusion

To reassemble your device, follow these instructions in reverse order.
