iRobot Roomba 4100 Flexible Rubber Brush Replacement

Written By: Samantha Barrett
  • Comments: 0
iRobot Roomba 4100 Flexible Rubber Brush Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

This is an easy guide. It should only take a few minutes to complete. It doesn't require any tools.

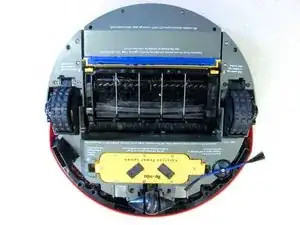

  1. ctAXlag42YVI4IEs

    • Lay the Roomba upside down on a flat surface with the blue strip away from you.

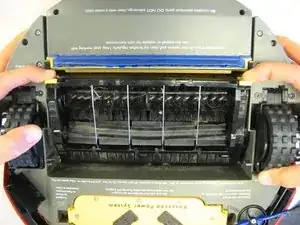

  2. VyaCRNAhaZiyhnVv
    VyaCRNAhaZiyhnVv
    TuKdaONlsbZZHHsl

    • Use your index fingers to pull the yellow tabs towards you.

    • While still pulling the yellow tabs with your index fingers, tilt up the brush guard.

    • For reassembly, make sure to push in the brush guard until it clicks into place.

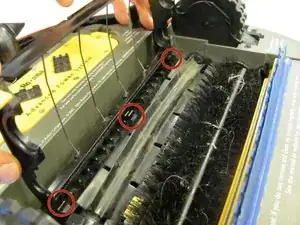

  3. KT2CESDiCHfuExTG

    • Pull back the brush guard to unhook it from the latches.

    • Remove the brush guard by lifting it up and out of the Roomba.

    • This picture has a change in orientation to illustrate the latches. Continue disassembling the Roomba with the blue strip away from you.

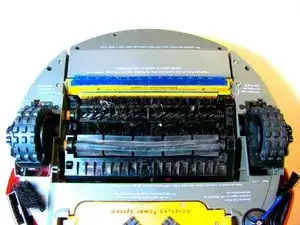

  4. ZWcS2S6LbBOXe3hx

    • Set the brush guard aside.

    • The flexible rubber brush is the smooth, all-rubber brush that is closest to the yellow battery.

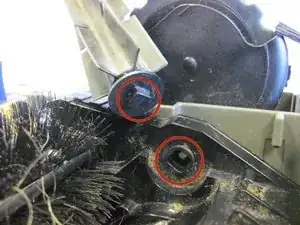

  5. LtsfVTvwDAwBZdji
    LtsfVTvwDAwBZdji
    PXtHb3R5K4vG1MFV

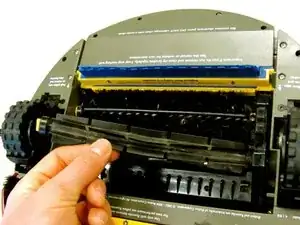

    • Remove the flexible rubber brush by grabbing it and pulling it up and out of the Roomba.

    • For reassembly, orient the Roomba with the battery closest to you:

    • First, insert the black end of the flexible rubber brush into the black square opening on the right side.

    • Second, lay the flexible rubber brush back into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
