iRobot Roomba 551 Brush Case Replacement

Written By: John McTigue
  • Comments: 2
iRobot Roomba 551 Brush Case Replacement

Difficulty

Easy

Steps

9

Time Required

5 - 15 minutes

Introduction

This guide explains how to remove the brush case from your Roomba.

  1. xww6MpGjt2iPLipf

    • Place your Roomba upside-down on a hard surface.

    If all you need off is the faceplate, skip all of the screwdriver-based steps, and just remove the dirt bin(step 7) and start from step 11 at the rear.

    David Forrest -

  2. k15AoIubeqL2P3At

    • While holding the side brush in place, use a Phillips #1 screwdriver to remove the 4.5mm screw from the center of the brush.

  3. sgQM6NRgIJjTtLE1

    • Gently pull upwards on the brush to remove it.

  4. XcOFuZuNQIdooCCR

    • Rotate the Roomba upside-down so the bottom is facing towards you.

  5. sBQCXt1RpxprHZ63
    sBQCXt1RpxprHZ63
    QPXMF5sXklLPKvww

    • Using a Phillips #2 screwdriver, remove the captive screws that hold the bottom plate in place.

  6. rPV6MXjUdsrF2NlA

    • Carefully lift the bottom plate.

    • The battery is only secured in place by the bottom plate, and may fall out once the bottom plate is removed.

  7. 2mPohbNFMmweJOUP

    • Push on the dirt bin release button, and pull gently.

    Might as well do this first, so you don’t dump dirt everywhere when flipping Roomba over.

    maccentric -

  8. AAqyHCgBFqcVsmbG

    • Use a Phillips #1 screwdriver to loosen the 4 captive screws around the case .

  9. DENUZk5AYLRfpTHD

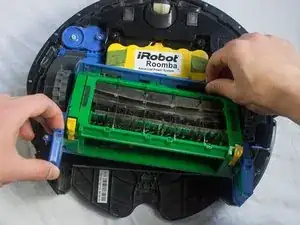

    • Grab the brush case and pull upwards to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
