iRobot Roomba 560 Top Panels Replacement

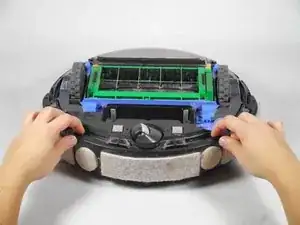

Flip the Roomba upside down.

Unscrew the single 5 mm screw on the yellow side sweeper using the Phillips #2 driver.

Lift the yellow side sweeper, removing it from the device.

Using the Phillips #2 driver, remove the four 10 mm screws that hold the back panel in place.

Lift up the back panel to remove it from the device.

Lift up the yellow battery by pulling up the green tabs on its side.

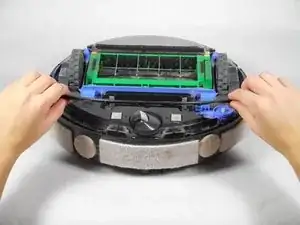

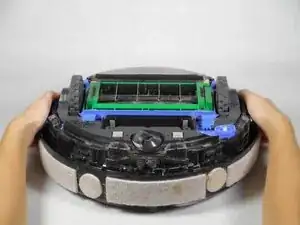

Rotate the Roomba so the bumper is in front of you.

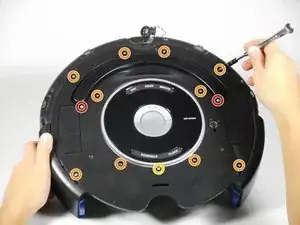

Using the Phillips #1 driver, remove the ten 10 mm screws on the bumper that run along the outer edge of the Roomba.

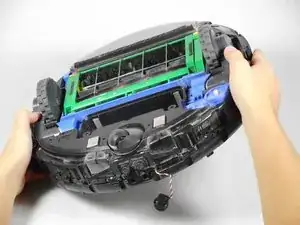

Lift the thin top cover that holds the bumper in place.

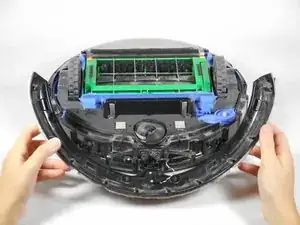

Gently lift the device upwards from the bumper to detach these two pieces.

Lift the bumper upwards for easier access.

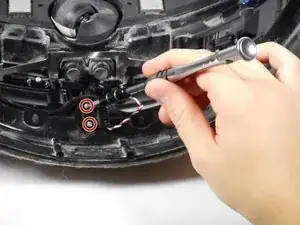

Unscrew the two 5 mm screws that connect the red and white wires to the device using the Phillips #1 driver.

Lift the circular black panel off the lens.

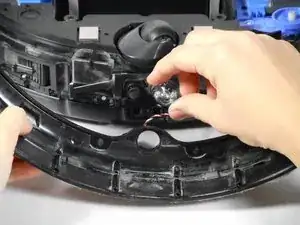

Lift the clear lens that is on the other side of the bumper and replace it with a new lens.

Turn the device over so that it is face up with the vacuum bin in front of you .

Press the button of the vacuum bin and pull out the bin from the device.

Use your hands to unhook the snaps between the silver panel from the black panel located where the vacuum bin was.

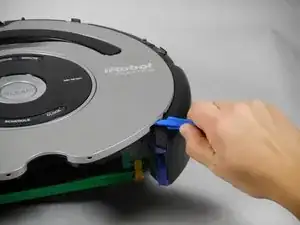

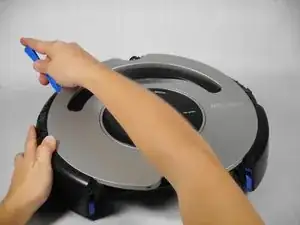

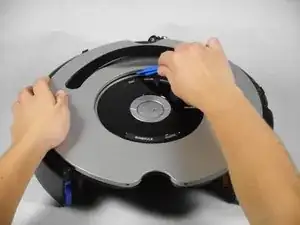

Using the plastic opening tool, go around the outer edges of the silver panel and unhook the snaps holding it in place.

Lift the black handle and use the plastic opening tool to unhook the snaps underneath it.

Use the same tool to pry the silver cover from the black central control board.

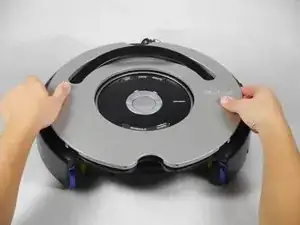

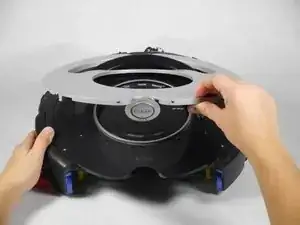

Lift the silver panel off of the black panel.

Use a Phillips #2 screwdriver to remove the following screws:

Two 7.5 mm-long screws at either end of the semicircular handle

Ten 5 mm-long screws

Use a Phillips #1 screwdriver to remove the 5 mm-long screw at the bottom of the control board.

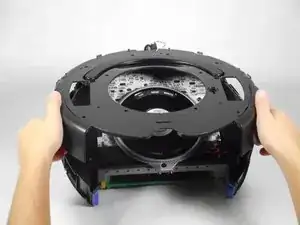

Lift the black panel off the device.
