Introduction

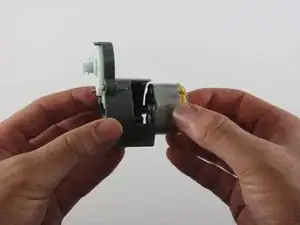

This motor is what keeps that yellow side brush turning, picking up hairs and things dust in those hard to reach places.
Tools
-
-

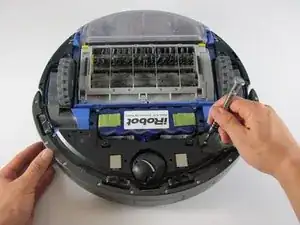

First start by removing the two - 6mm screws with your Phillips head #1, that unlock the motor from your Roomba
-

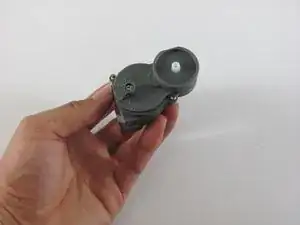

Pull the brush motor out
-
-
-

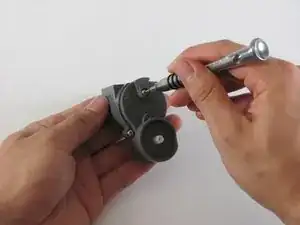

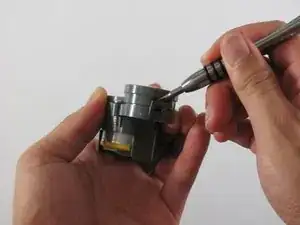

Next, with the same head remove the screw holding the plastic housing together
-

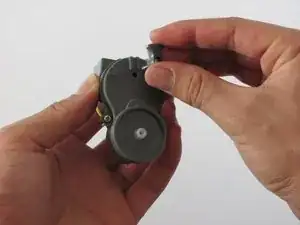

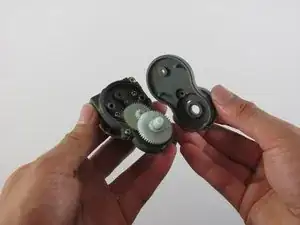

Carefully pry the gear box open by placing a flat head screwdriver in the slot
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
